KE Matrix Manager

Part # CCKMUPC 6727924030640.29 lb

Management
Centralized CCKM, allowing you to configure, administer, control, and maintain all KVM over IP extenders via an intuitive web based GUI
KE Link App – allows customers with licenses to remotely manage KVM over IP extenders on the CCKM with an iPad from anywhere
One-to-one, one-to-many, many-to-one and many-to-many Tx / Rx connections
Profiles save and reserve unlimited Tx to Rx device connections
Channel connections allow Rx devices to connect to multiple Tx devices – to stream video, audio, USB and serial sources independently

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

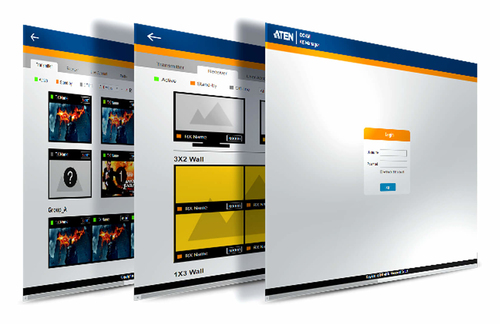

ATEN’s KVM over IP Matrix Manager, CCKM, provides IT administrators with tools to centralize the control and management of KVM over IP extenders in their IT environment. It allows easy administration of all KVM over IP extenders with a user-friendly, web-based GUI.

The CCKM’s Primary-Secondary architecture safeguards data transmissions through built-in redundancy factors, including automated database backup of primary and secondary servers and devices in addition to real-time database updating. Redundancy ensures that if any server hosting the CCKM goes down, the system will remain functioning, since a redundant secondary server maintains all the required services until the primary server comes back up.*

Through ATEN’s CCKM, the KVM over IP extenders provide advanced features for username and password authentication, user authorization and auto-detection of all devices that can be switched and shared. With secured transmissions in mind, the KVM over IP extenders implement AES encryption, while RADIUS, LDAP and AD ensure user account authentication.

IT administrators receive the following benefits implementing the CCKM:

• Advanced features for multi-displays, video grouping, fast switching, profile broadcasting, and media playback scheduling.

• Greater access with quick and easy control tools for configuration of KVM over IP extenders.

• Secure and reliable access with AES encryption and server redundancy.

Note:

*To set up server redundancy, installation of the CCKM USB license key on both the primary and secondary servers is required.
