TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic
- Full motion single TV ceiling mount for VESA mounted displays or curved TVs from 32 to 75"
- Weight capacity of up to 110lb (50kg)
- Hanging TV mount features a adjustable telescopic pole, 3.5'-5' (1-1,5m) from ceiling
- Flat screen ceiling mount swivels +60/-60 degrees to adjust to sloped or level ceilings
- Universal mount lets you swivel the display +180/-180 degrees around the pole and tilt downwards -25 degrees without tools
- LCD TV ceiling mount bracket features a hook-and-mount design
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

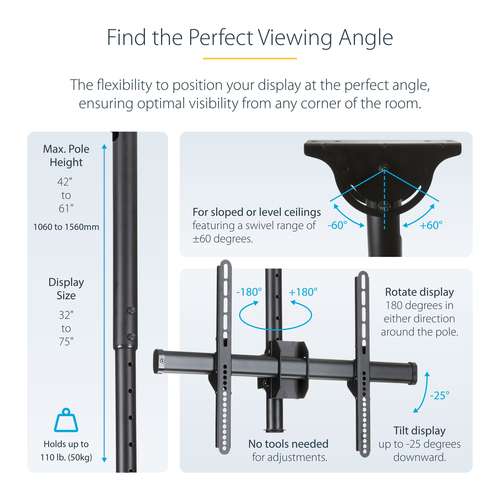

Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FLATPNLCEIL is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Specifications
Mounting
- Maximum weight capacity
- 50 kg
- Minimum screen size
- 81.3 cm (32")
- Number of displays supported
- 1
- Maximum screen size
- 190.5 cm (75")
- Mounting type
- Ceiling
- Minimum VESA mount
- 200 x 200 mm
- Maximum VESA mount
- 600 x 400 mm
- Panel mounting interface
- 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 1100 - 1600 mm
- Tilt angle range
- -25 - 0°
- Swivel angle range
- -180 - 180°
- Angle of rotation
- 360°
- Pivot angle
- -180 - 180°
- Adjustable
- Yes
- Cable management
- Yes
Design
- Product colour
- Black
- Housing material
- Steel
- Anti-theft function
- No
- Certification
- CE, REACH
Weight & dimensions
- Width
- 140 mm
- Depth
- 680 mm
- Depth (max)
- 68 cm
- Height
- 1800 mm
- Weight
- 6 kg
Packaging data
- Package width
- 935 mm
- Package depth
- 315 mm
- Package height
- 148 mm
- Package weight
- 7.8 kg

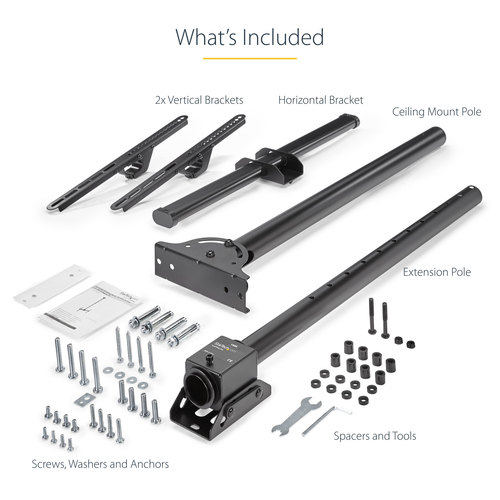

Packaging content
- Manual
- Yes
- Screws included
- Yes
- Number of screws
- 24
- Wrench included
- Yes
- Washers included
- Yes
- Number of washers included
- 4
- Spacer included
- Yes
- Number of spacers included
- 16
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85299097
- Master (outer) case width
- 342 mm
- Master (outer) case length
- 956 mm
- Master (outer) case height
- 310 mm
- Products per master (outer) case
- 2 pc(s)
