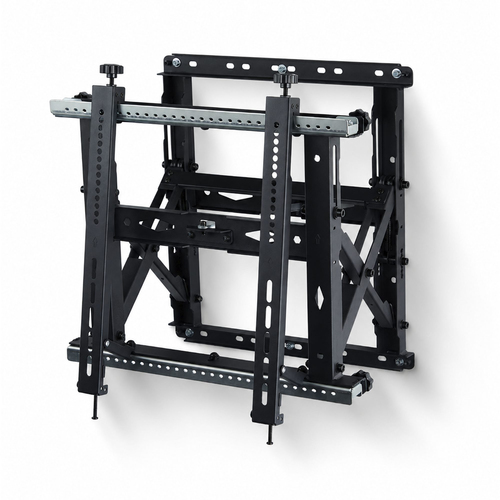

Video Wall TV Mount for up to 70-inch and 154lb (70kg) Displays, Landscape/Portrait Orientation

Part # 715LPQ-TV-VIDEO-WALLUPC 065030919852Warranty: 5 Years32.95 lb

Create scalable video wall setups with this TV video wall mount
Supports 45 to 70-inch displays up to 70kg (154lb)
Supports landscape or portrait orientation with VESA compatibility from 200x200 to 600x400
TV bracket provides six points of adjustment controlling height lateral positioning tilt swivel depth and rotation for precise video wall alignment
Pop out design with kickstand extends up to 12.8in (32.5cm) from the wall allowing easy rear access for existing AV setups

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Build a professional video wall with quick, tool-less display adjustments

Build modular video wall installations with a TV mount that supports six points of adjustment while still providing pop-out rear access, helping simplify alignment and maintenance in professional AV setups.

Create Scalable Video Wall Setups

Combine multiple mounts to build flexible video wall layouts like 2x2, 1x4, or custom configurations for commercial and public-facing deployments. Each wall bracket supports displays up to 70-inch and154lb (70kg).

Support Landscape or Portrait Mounting

Install displays vertically or horizontally with VESA compatibility from 200x200 to 600x400mm, giving you greater versatility when designing video wall layouts. A wall mounting plate CAD file and instructional video are available for download to support planning and integration.

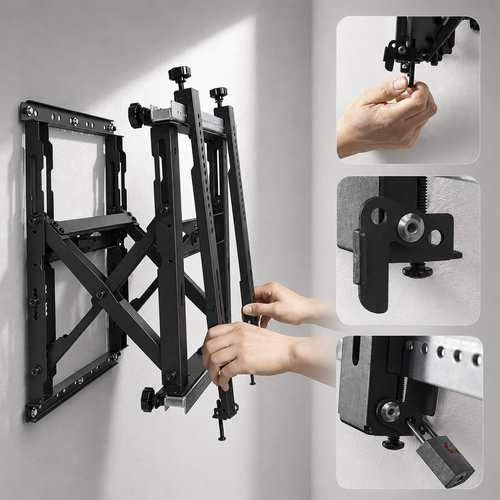

Access Displays Quickly for Service

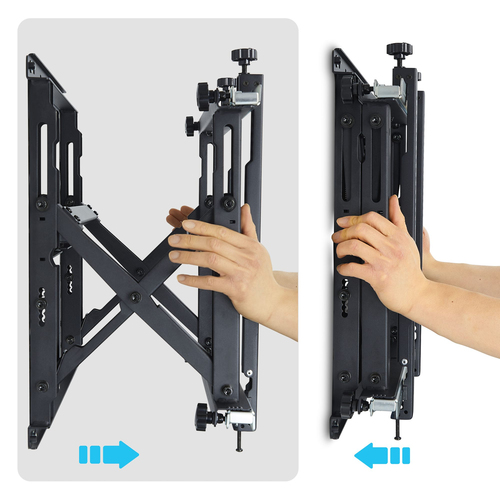

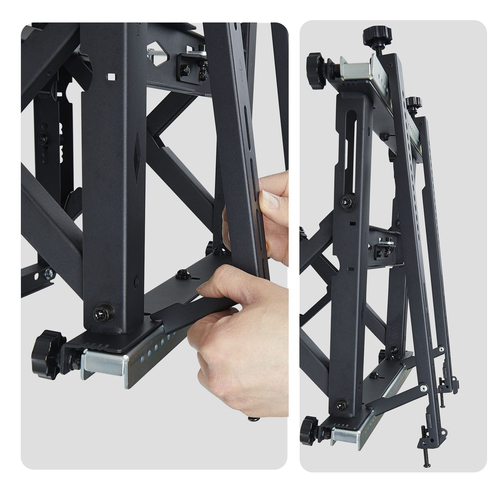

Pop-out design with a kickstand extends up to 12.8in (32.5cm) from the wall, providing easy rear access for adjustments, maintenance, and cable management on mounted TV panels.

Achieve Precise Screen Alignment

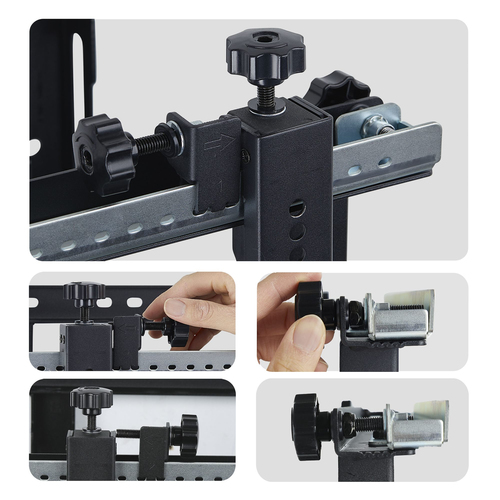

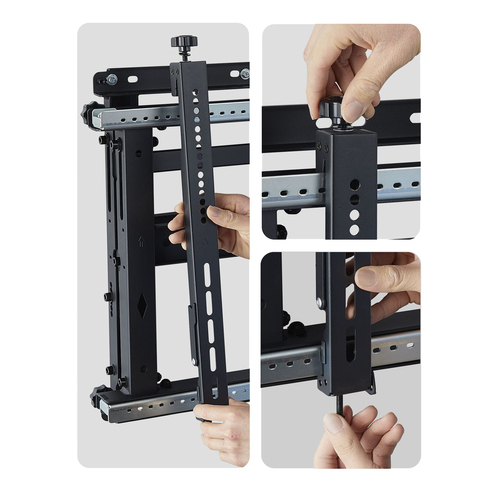

Six adjustments provide control over height, lateral positioning, tilt, swivel, depth, and rotation, helping to fine-tune final placement without remounting the displays for alignment and a clean video wall finish.

Specifications

Ergonomics

Type: Fixed
Height adjustment: Yes
Product colour: Black
Tilt angle range: -3 - 2°
Distance to the wall (min): 14.3 cm

Mounting

Maximum weight capacity: 70 kg
Minimum screen size: 114.3 cm (45")
Maximum screen size: 177.8 cm (70")
Mounting type: Wall
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400
Orientation: Horizontal/Vertical

Weight & dimensions

Width: 640 mm
Depth: 120 mm
Height: 544 mm
Weight: 10.5 kg

Packaging data

Package width: 585 mm
Package depth: 566 mm
Package height: 135 mm
Package weight: 15.1 kg

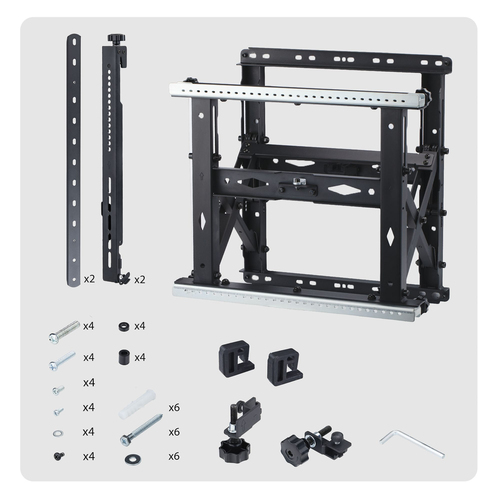

Packaging content

Packaging content: 1 - Video Wall Mount Assembly 2 - TV VESA Brackets, I 2 - TV VESA Brackets, II 1 - Lateral Adjuster, Left 1 - Lateral Adjuster, Right 1 - 6mm Hex Key 4 - M6x10mm Screws 4 - M6x14mm Screws 4 - M6x30mm Screws 4 - M8x16mm Screws 4 - M8x35mm Screws 4 - Wall Mounting Screws 6 - Concrete Wall Anchors 10 - Washers 4 - Long Spacers 4 - Short Spacers 1 - Product Documentation
