StarTech.com 3MP2AG-MONITOR-ARM Drag to turn · 14 views
StarTech.comMonitor Mounts & Stands

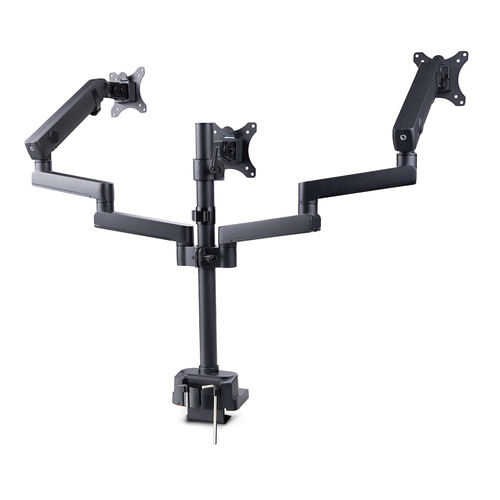

Desk Mount Triple Monitor Arm For Up To Three 27in Screens, VESA 75x75/100x100, Tool-Less Arm

Part # 3MP2AG-MONITOR-ARMUPC 065030902038Warranty: 5 Years19.5 lb

  • Triple monitor desk mount for up to 15.4lb 27inch displays
  • VESA 75X75/100x100mm
  • One-touch Mechanical Spring Arm
  • Tool-Less ergonomic arms with +/-180 DEG swivel +/-90 DEG tilt
  • VESA +/-90 DEG rotation
  • for portrait/landscape screens
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

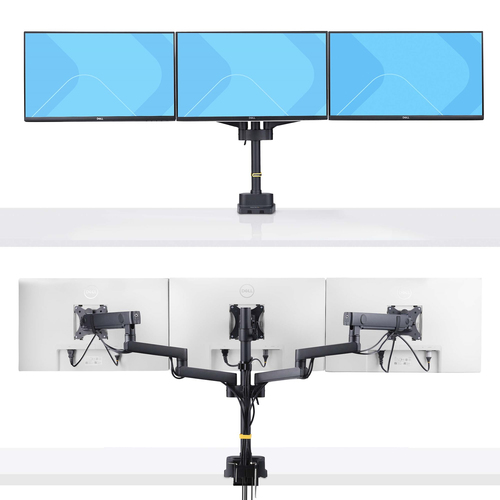

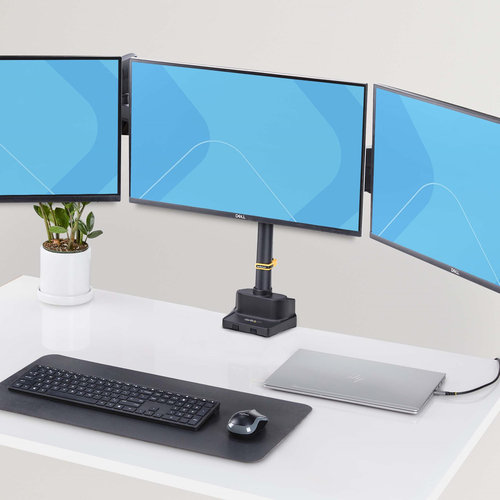

Triple monitor desk mount with support up to 27" monitors with height adjustable articulating arms

This monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. The mechanical spring-assisted arms allow multiple adjustment to suit different ergonomic needs.

01

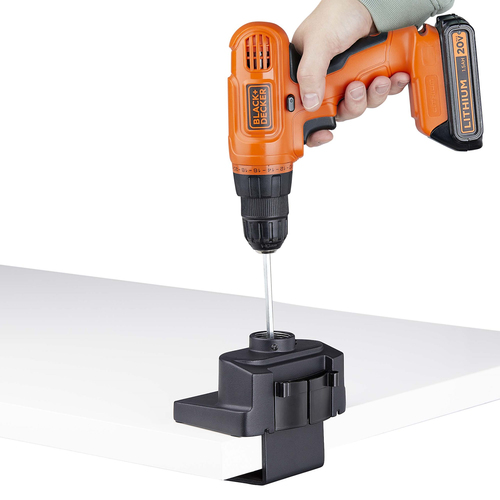

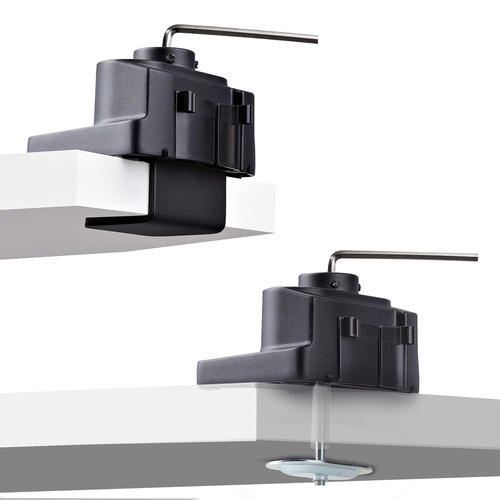

Top-Down Installation

The unique top-screw desk clamp simplifies installation by enabling users to tighten the clamp from manually from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with an interchangeable C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

02

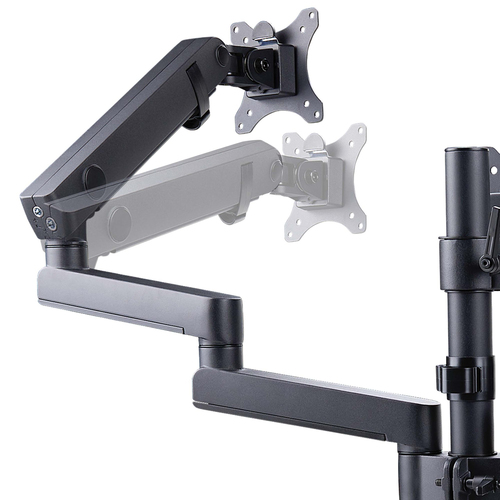

Height Adjustment with One Smooth Motion

The central monitor mount enables height adjustments along the 19-inch (483mm) pole, allowing users to customize the screen placement for maximum productivity and comfort. The outboard arms enable independent toolless height adjustment of up to 10in (255mm) with effortless one-touch motion. For additional adjustments, reposition the outboard arms along the pole for different height ranges. The arms can extend up to 28.4in (722mm) from the pole.

03

Range of Motion

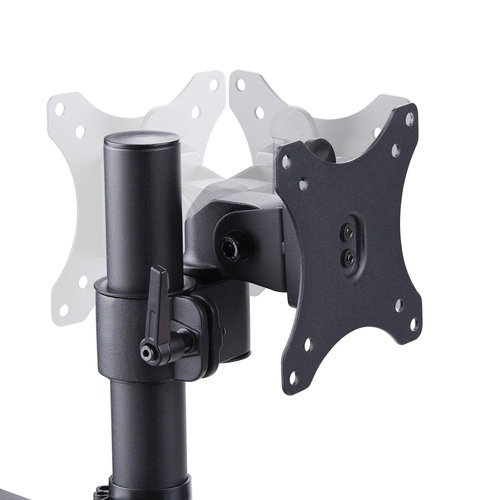

The articulating arms allow toolless adjustments of +/-180° horizontal swivel and +/-90° screen rotation on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for +/-90° display tilt to provide an ideal viewing angle.

04

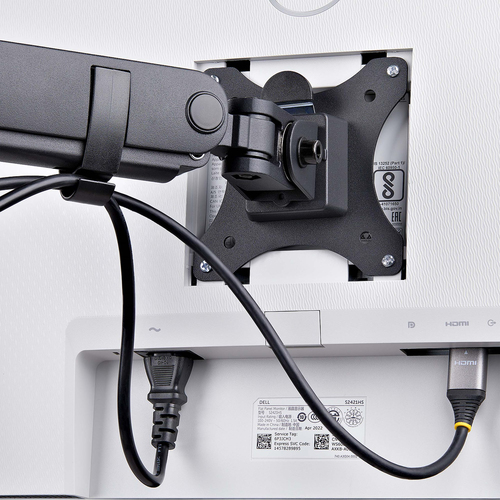

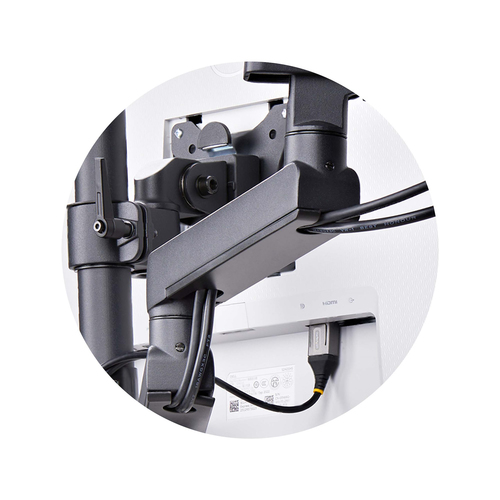

Cable Management

To maintain an organized workspace, the adjustable arms feature cable management channels along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.

Specifications

Mounting

Maximum weight capacity
21 kg
Number of displays supported
3
Maximum weight capacity (per display)
7 kg
Maximum screen size
68.6 cm (27")
Mounting
Clamp/Grommet
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Extension arm (max)
72.2 cm
Desk thickness (max)
5 cm

Ergonomics

Height adjustment
Yes
Height adjustment range
225 - 562 mm
Tilt angle range
-90 - 90°
Rotating
Yes
Angle of rotation
90°
Pivot angle
-180 - 180°
Cable management
Yes

Design

Housing material
Aluminium, Plastic, Steel
Product colour
Black
Anti-theft function
No

Weight & dimensions

Width
176 mm
Depth
1400 mm
Height
649 mm
Weight
1 kg

Packaging data

Package width
562 mm
Package depth
405 mm
Package height
121 mm
Package weight
8.9 kg

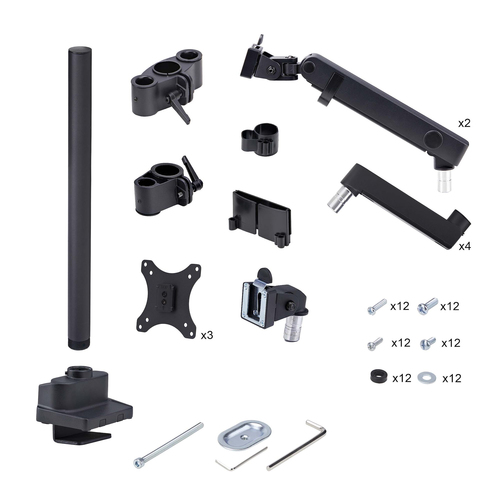

Packaging content

Wrench included
Yes
Wrench type
Hexagonal wrench
Clamp included
Yes
VESA mount included
Yes
Number of cable clips
1
Screws included
Yes
Number of screws
49
Number of washers included
12
Number of spacers included
12
Grommet plate included
Yes
Manual
Yes

Logistics data

Master (outer) case width
590 mm
Master (outer) case length
426 mm
Master (outer) case height
268 mm
Products per master (outer) case
2 pc(s)
