VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket

Part # FHA-TV-WALL-MOUNTUPC 065030895149Warranty: 2 Years15.35 lb

Spring-assisted height adjustable TV wall mount (range 12.6in/32cm)
Tilting and full motion for 23"-55" TVs
VESA TV wall mount patterns 75x75 to 400x400
Max weight 66lb (30kg)
VESA plate features +/-90DEG swivel
+8/-15DEG tilt

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Mounting Hardware Included | One-touch Adjustments | Digital Signage

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Versatile TV Mounting

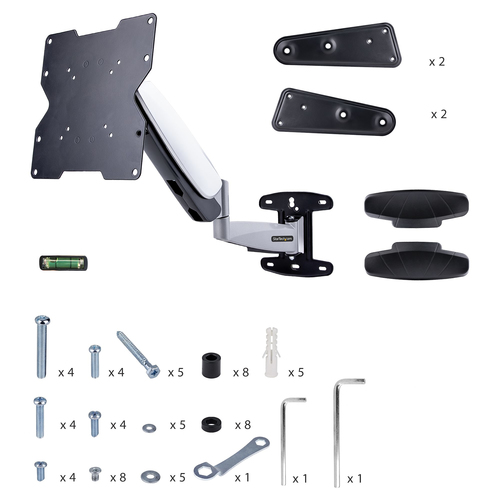

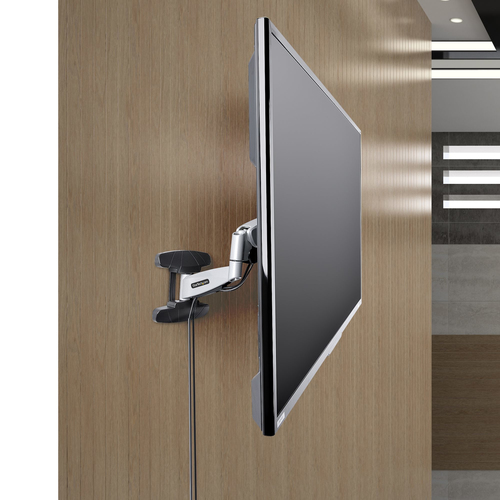

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.

Full-Motion Adjustment

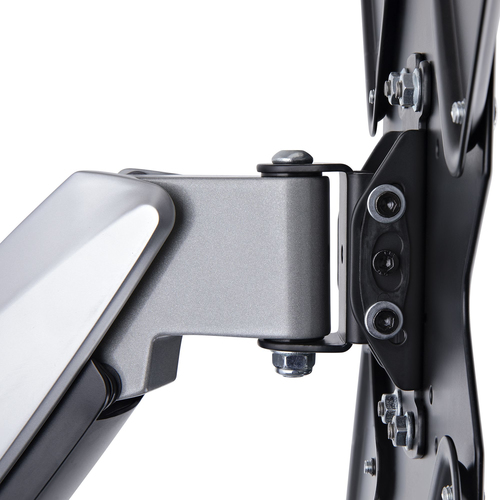

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

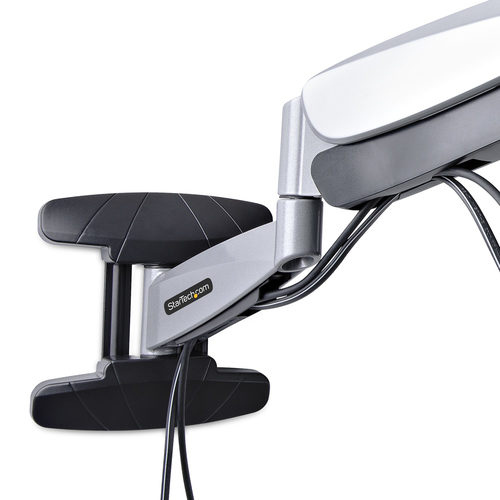

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Mounting

Maximum weight capacity: 30 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400
Mounting type: Wall
