StarTech.comRack Accessories
1U High-density Brush Strip Cable Management Panel, Sturdy Steel Horizontal Data Centre Cable Organizer
- Organize cables while keeping dust out of the rack with a brush-style cable manager
- Compatible with standard 19" 2-post or 4-post racks
- 1U Brush Strip/Horizontal Server Rack Cable Management Panel/Brush Plate Network Cable Manager/Cable Organizer/Brush Cable Management/1U Cable Management
- Use with server racks and cabinets, structured wiring closets and network distribution cabling to keep cables neat and tidy
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

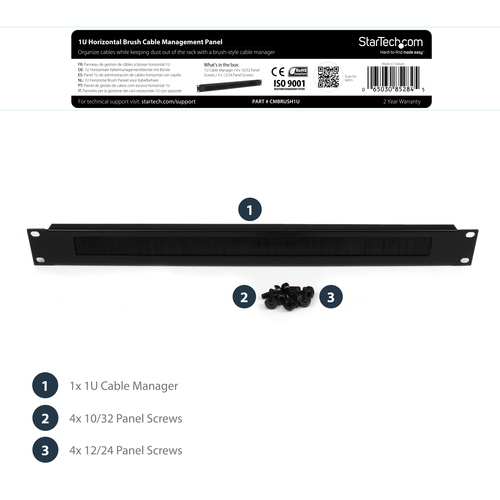

Organize cables while keeping dust out of the rack with a brush-style cable manager
The CMBRUSH1U Brush Strip Cable Management Panel mounts to a standard 19" 2 or 4-post rack to organize cables while keeping dust and dirt out of the rack.
Constructed of high-quality steel with high-density nylon bristles, the 1U brush plate creates a clean looking point of entry and offers cable separation for simple cable organization. The brush panel also promotes proper airflow through the rack by closing off open spaces between equipment.
For easy installation, this cable organizer comes complete with 2 sets of rack screws (10/32 and 12/24).
Specifications
Features
- Type
- Cable management panel
- Product colour
- Black
- Housing material
- Steel
- Rack capacity
- 1U
- Compliance industry standards
- EIA RS310-D
- Certification
- CE, TAA, REACH
Weight & dimensions
- Width
- 485 mm
- Depth
- 20.2 mm
- Height
- 44 mm
- Material thickness
- 1.2 mm
- Weight
- 421.2 g
Packaging data
- Package width
- 500 mm
- Package depth
- 57 mm
- Package height
- 28 mm
- Package weight
- 506.4 g
Packaging content
- Screws included
- Yes
- Number of screws
- 8
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 517 mm
- Master (outer) case length
- 325 mm
- Master (outer) case height
- 181 mm
- Products per master (outer) case
- 30 pc(s)
- Harmonized System (HS) code
- 85389099
Downloads
