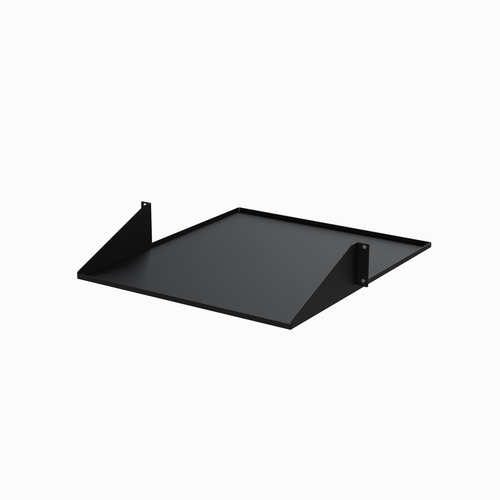

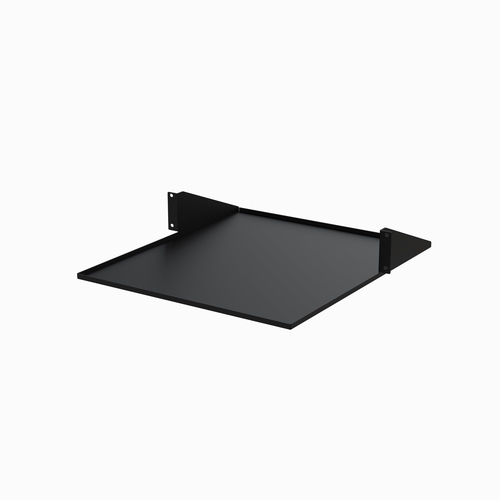

2U 19" 2-Post Network Rack Shelf - 20in Deep Center Mount Cantilever Tray Rackmount Shelf for
- 2U 2Post 19" compliant 20" deep network rack shelf for a universal fit in any EIA 30 AV/data rack and includes mounting hardware
- Center-mount design allows equipment on the drawer to sit forward of the posts of the rack for easier installation and routing of cables
- Heavy duty double sided cantilever tray is constructed using durable 14 SPCC commercial cold rolled grade steel and can hold equipment up to 75 lb.(34 kg)

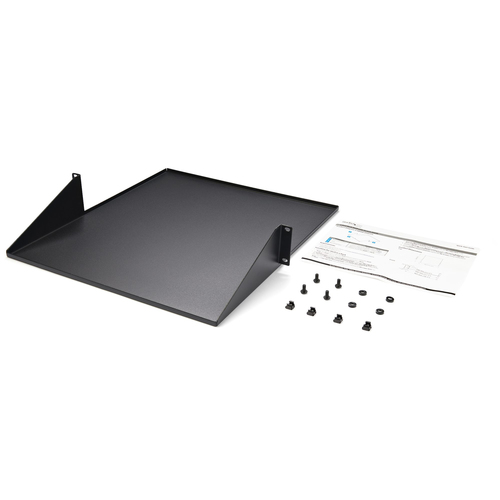

- Includes mounting brackets cage nuts and screws
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
2 Post Network Rack shelf | Black | 75 lb. (34 kg)
The 2 post server rack shelf allows you to add a high capacity mid-mount fixed shelf to almost any standard 2 post server rack.
EIA 310 Compliant
Our 2U rack shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks. The included mounting brackets can be adjusted to accommodate different post depths, making this center mount rack shelf a universal solution for 2 post rack storage.
Solid Steel Construction
Constructed using SPCC commercial grade cold-rolled steel, this durable 2 post network rack shelf can hold up to 75 lb. (34 kg) of equipment - a perfect solution for storing non-rackmount equipment, tools, peripherals or accessories in your rack to keep them readily accessible.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Specifications
Features
- Type
- Rack shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 34 kg
- Rack capacity
- 2U
- Compliance industry standards
- EIA/ECA-310-E
Weight & dimensions
- Width
- 483 mm
- Depth
- 508 mm
- Height
- 88 mm
- Weight
- 4 kg
Packaging data
- Package width
- 550 mm
- Package depth
- 552 mm
- Package height
- 132 mm
- Package weight
- 5.4 kg
Packaging content
- Screws included
- Yes
- Number of screws
- 4
- Nuts included
- Yes
- Number of nuts
- 4
- Number of washers included
- 4
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 578 mm
- Master (outer) case length
- 663 mm
- Master (outer) case height
- 571 mm
- Products per master (outer) case
- 5 pc(s)
- Harmonized System (HS) code
- 85389099
