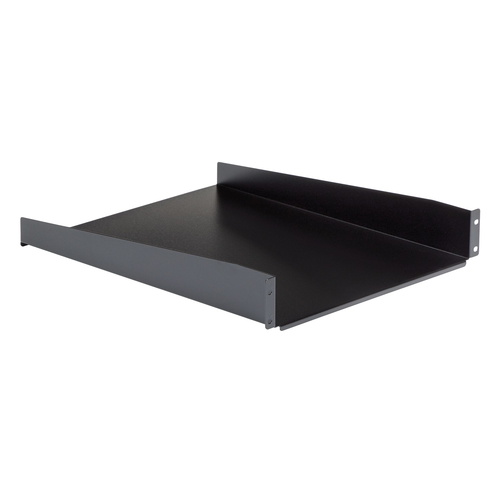

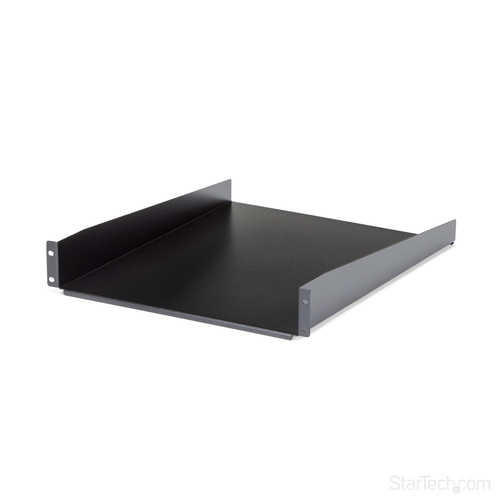

2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" Network Equipment Rack &
- 2U 19" Server rack cabinet shelf 22" deep/ EIA/ECA-310 compliant for universal fit in any existing server/AV cabinet or enclosure/w/cage nuts and screws for mounting
- Heavy-duty cantilever tray is easy to install w/durable 16 gauge SPCC commercial cold-rolled steel holding up to 50lbs

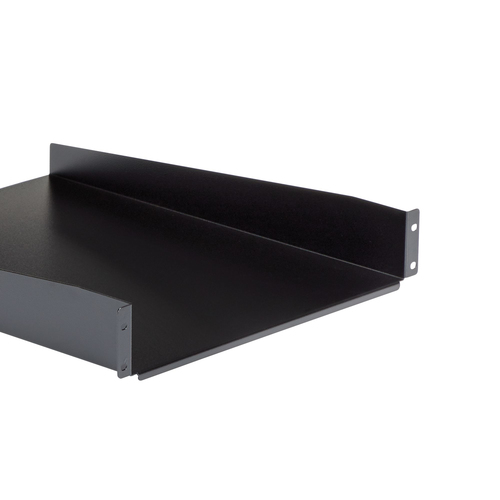

- For flexibility shelf mounts in multiple orientations w/lips on one side to prevent equipment sliding off
- Compatible w/StarTech.com racks plus brands like HP APC Dell w/24 hr tech support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

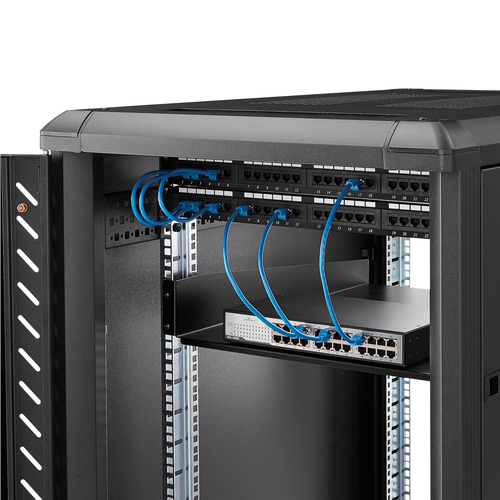

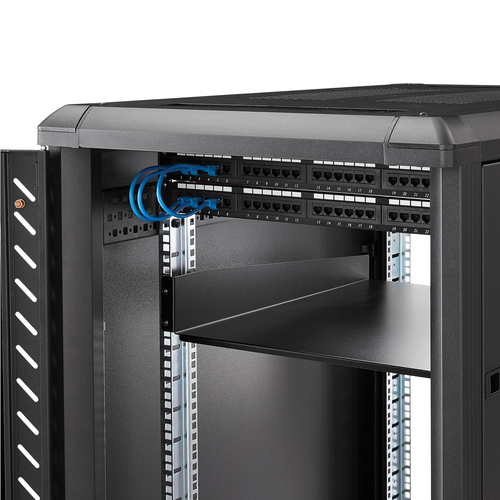

Add a sturdy, 22in depth fixed shelf into almost any server rack or cabinet
The CABSHELF22 2U 22in Depth Fixed Rack Mount Shelf lets you add a compact, 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

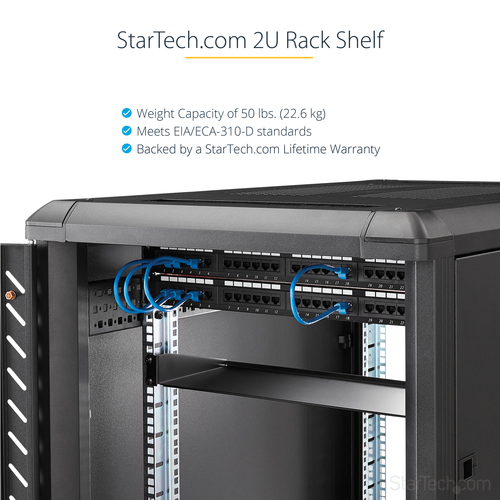

Our high-quality rack shelves are designed to withstand harsh work environments with ease. Constructed using SPCC commercial grade cold-rolled steel, this durable fixed rack shelf can hold up to 22kg (50lbs) of equipment - a perfect solution for storing small, non-rackmount equipment, tools, peripherals or accessories in your rack to keep them readily accessible.
Backed by a StarTech.com Lifetime warranty.
Specifications
Features
- Type
- Shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 22.6 kg
- Rack capacity
- 2U

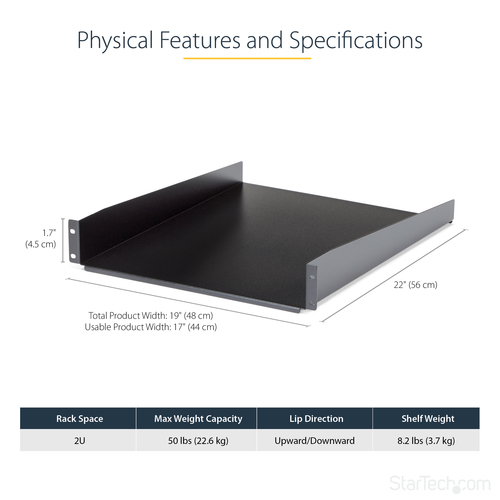

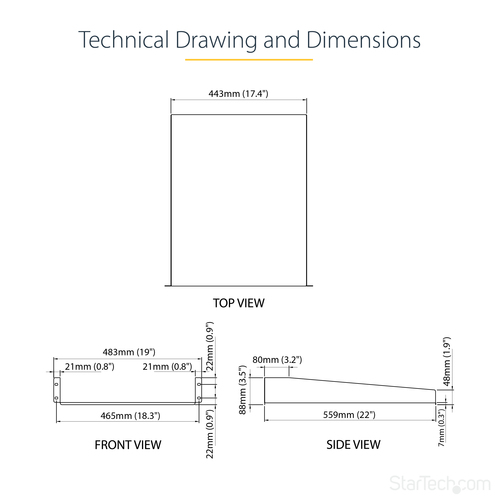

Weight & dimensions
- Width
- 465 mm
- Depth
- 558.8 mm
- Height
- 88 mm
- Weight
- 3.7 kg
Packaging data
- Package width
- 573 mm
- Package depth
- 585 mm
- Package height
- 112 mm
- Package weight
- 4.8 kg
Packaging content
- Quick installation guide
- Yes

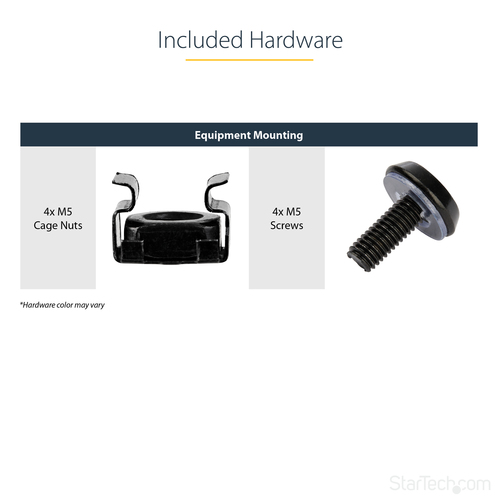

- Screws included
- Yes
- Screw type
- M5
- Number of screws
- 4
- Cage nuts included
- Yes
- Number of cage nuts
- 4
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 566 mm
- Master (outer) case length
- 585 mm
- Master (outer) case height
- 110 mm
- Products per master (outer) case
- 1 pc(s)
- Harmonized System (HS) code
- 85389099
