StarTech.comRack Accessories
2-Pack 1U Server Rack Shelf, Vented Universal Rack Mount Cantilever Shelf, For 19" Rack/Cabinet

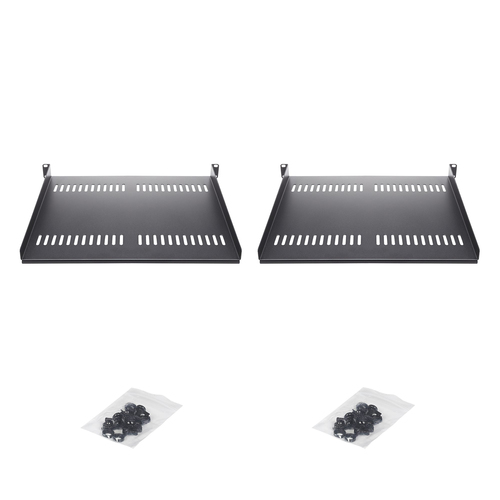

- 2-Pack of 1U 19" Vented server rack shelves
- Cantilever style mounting
- Durable 16-gauge SPCC cold-rolled steel
- Total weight capacity of 44lb/20kg
- EIA/ECA-310 compliant for use in standard 19-inch server racks

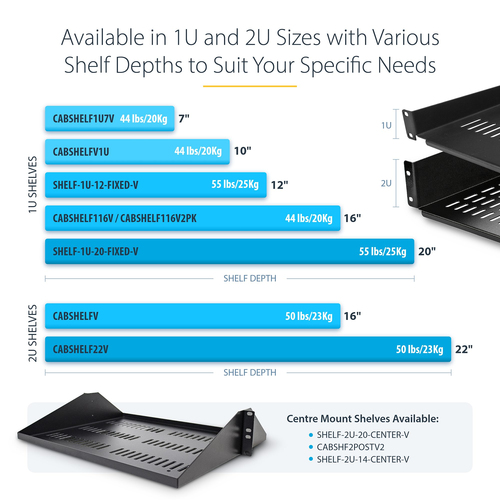

- 15.7in (40cm) deep
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

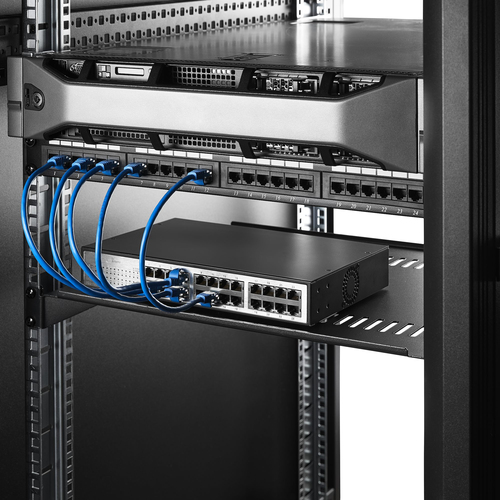

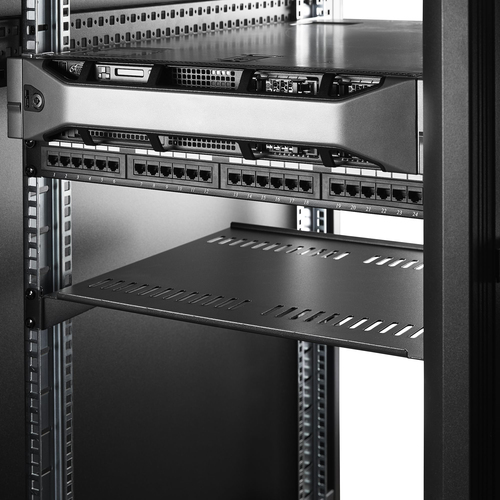

Add a sturdy vented shelf into a 19-inch server rack or cabinet

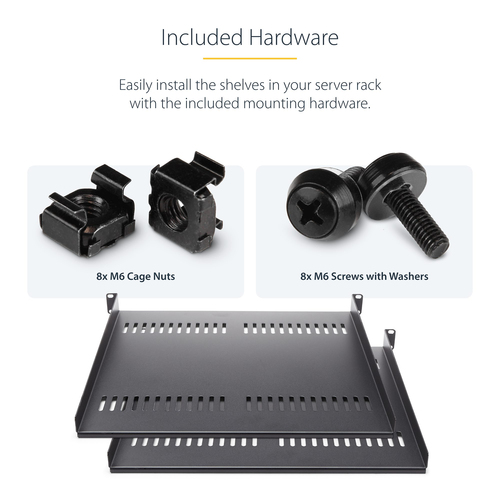

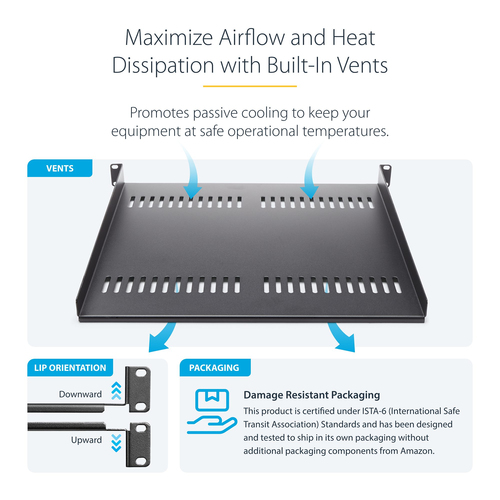

This 2-pack of 1U rack shelves adds low-profile storage to any EIA-310-compliant 19-inch server rack or cabinet. The shelf is vented to improve airflow to mission-critical equipment. Cage nuts, screws, and washers are included for installation.
01
Robust Shelf

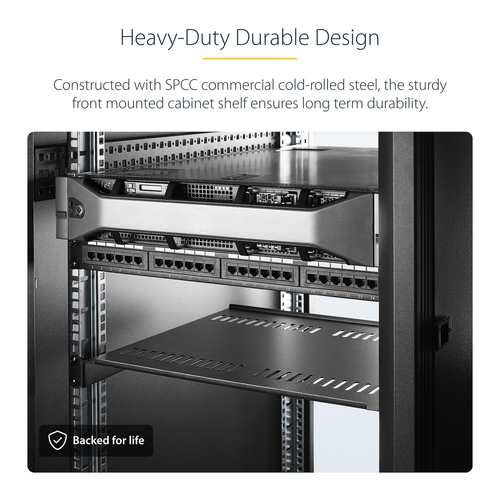

This 16-gauge SPCC steel server rack shelf features a maximum weight capacity of 44lb (20kg).
02
Efficient Use of Space

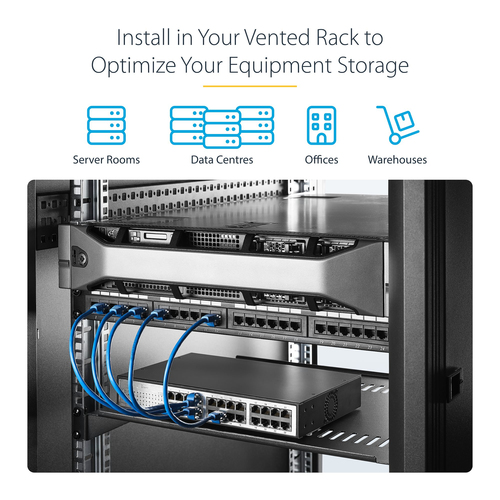

The 1U cantilever shelf optimizes the workspace by storing tools, peripherals, or non-rackmount equipment, saving desk or floor space. Ideal for SOHO environments, server rooms, and other space-constrained locations.
Specifications
Features
- Type
- Rack shelf
- Product colour
- Black
- Housing material
- SPCC
- Maximum weight capacity
- 20 kg
- Wall mountable
- No
- Compliance industry standards
- EIA/ECA-310-E

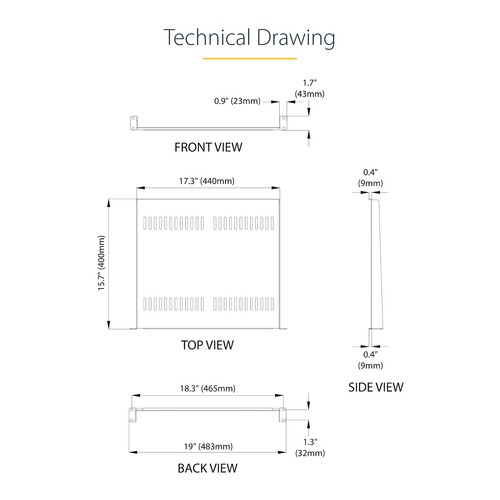

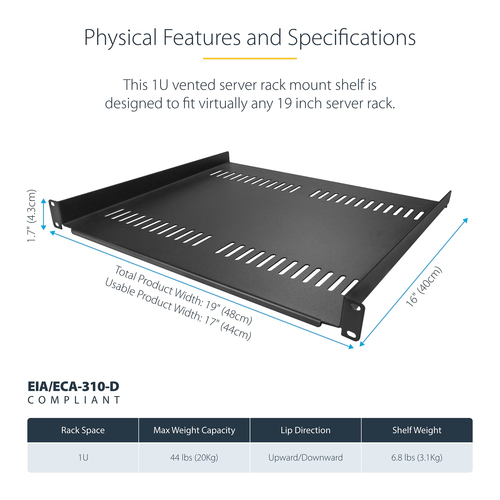

Weight & dimensions
- Width
- 483 mm
- Depth
- 400 mm
- Depth (max)
- 40 cm
- Height
- 43 mm
- Material thickness
- 2 mm
- Weight
- 3.1 kg
Packaging data
- Quantity per pack
- 2 pc(s)
- Package width
- 579 mm
- Package depth
- 514 mm
- Package height
- 129 mm
- Package weight
- 7.1 kg
Packaging content
- Quick installation guide
- Yes
- Screws included
- Yes
- Number of screws
- 8
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Washers included
- Yes
- Number of washers included
- 8
Logistics data
- Master (outer) case width
- 586 mm
- Master (outer) case length
- 535 mm
- Master (outer) case height
- 551 mm
- Products per master (outer) case
- 4 pc(s)
