StarTech.comRack Accessories
2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" Network Equipment Rack &
- 2U 19" Server rack cabinet shelf 16" deep/ EIA/ECA-310 compliant for universal fit in any existing server/AV cabinet or enclosure/w/cage nuts and screws for mounting
- Heavy-duty cantilever tray is easy to install w/durable 16 gauge SPCC commercial cold-rolled steel holding up to 44lb
- For flexibility shelf mounts in multiple orientations w/lips on one side to prevent equipment sliding off
- Compatible w/StarTech.com racks plus brands like HP APC Dell w/24 hr tech support
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

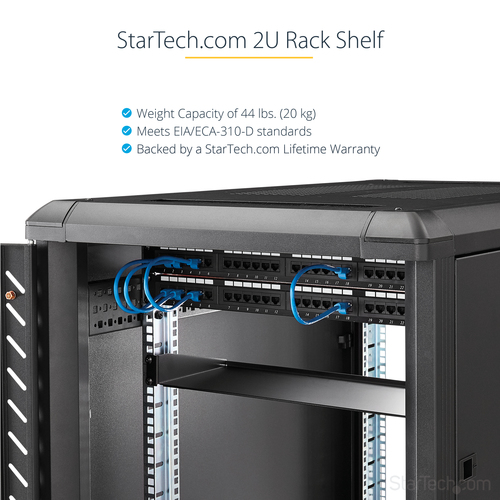

Add a sturdy, fixed shelf into almost any server rack or cabinet
The Black CABSHELF Standard Universal Server Rack Cabinet Shelf helps to efficiently organize your mission critical computer hardware and accessories by adding a fixed shelf with the capacity to hold up to 20 kg (44 lbs).
Universally mountable in any standard front mount 19” server rack or cabinet, the rack shelf is constructed of sturdy, cold-rolled steel for long-term durability.
Backed by a StarTech.com Lifetime warranty.
Specifications
Features
- Type
- Shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 20 kg
- Rack capacity
- 2U

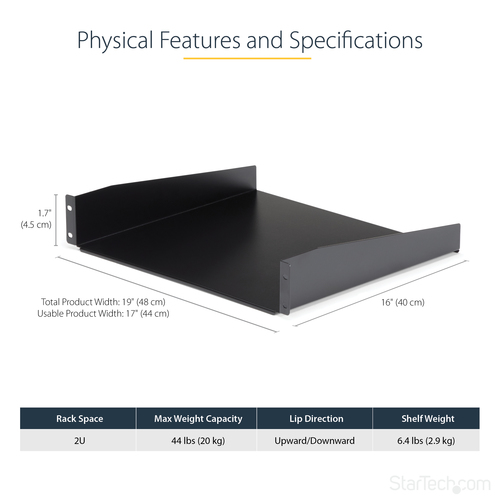

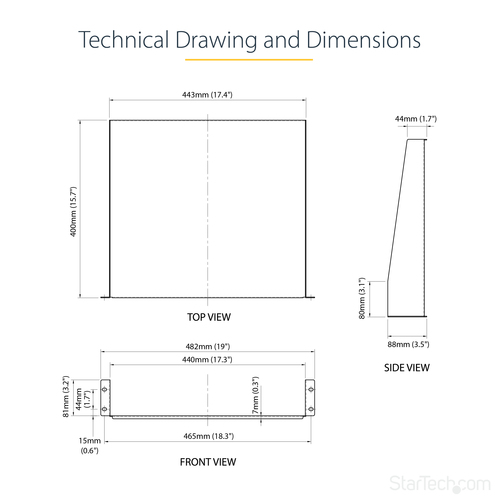

Weight & dimensions
- Width
- 443 mm
- Depth
- 400 mm
- Height
- 88 mm
- Weight
- 2.9 kg
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 570 mm
- Package depth
- 494 mm
- Package height
- 163 mm
- Package weight
- 3.8 kg

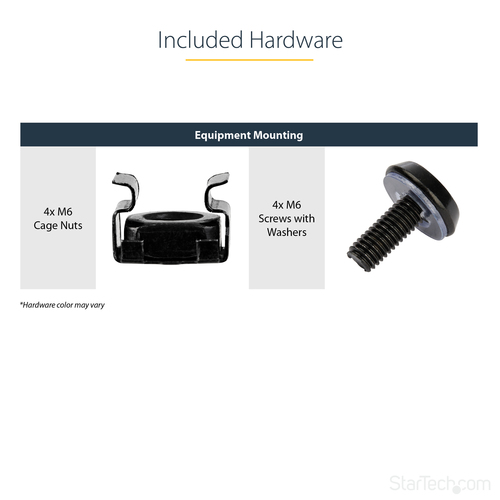

Packaging content
- Screws included
- Yes
- Screw type
- M6
- Number of screws
- 4
- Cage nuts included
- Yes
- Number of cage nuts
- 4
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Master (outer) case width
- 815 mm
- Master (outer) case length
- 586 mm
- Master (outer) case height
- 526 mm
- Products per master (outer) case
- 5 pc(s)
- Harmonized System (HS) code
- 85389099
