StarTech.com ARMPIVOTHDB Drag to turn · 12 views
StarTech.comMonitor Mounts & Stands

Desk Mount Monitor Arm - Heavy Duty Ergonomic VESA Monitor Arm - Single 32" (19.8lb/9kg) Display

Part # ARMPIVOTHDBUPC 065030880510Warranty: 5 Years9.2 lb

  • VESA 75x75/100x100mm compatible heavy-duty monitor arm for single large 32" (16:9) or 43" (32:9/ultrawide) display up to 9kg w/ full motion
  • Articulating ergonomic monitor arm w/ tilt/swivel/90 DEG rotating screen (portrait/landscape) | 360 DEG rotating arm
  • Max height of 505mm from desk | Full motion arm adjustable height w/ range of 335mm and can extend out 605mm
  • C-clamp/grommet mount to desk (10mm-80mm)
  • Aluminum desk mount monitor arm w/ small footprint | matte black | cable mgmt
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

VESA Monitor Mount | Single Monitor up to 20lb | Articulating

Free up space while creating an ergonomic work environment. This desk-mount monitor arm makes it easy to securely mount your display above your desk or table and adjust the height with one touch. You can mount a display ranging in size from 13" to 32"; and the monitor arm features an attractive black finish that complements your workspace.

01

Mount Your Monitor to Save Space

This heavy-duty monitor arm saves space on your work surface by elevating your monitor above your desk or table.

02

One-Touch Height Adjustment

The monitor-mount arm features a gas-spring cylinder that makes it easy to raise or lower your display, with up to 13.2" (335 mm) of height adjustment. Adjust the tension according to the weight of your monitor, to re-position the monitor height effortlessly.

03

Adjust Your Monitor for Ideal Viewing

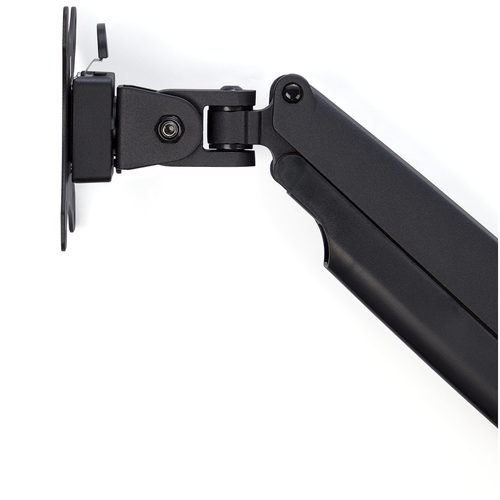

The full-motion articulating monitor arm extends up to 23.8" (605 mm) so it's easy to find the right viewing angle. Swivel or tilt your screen +/-90 degrees for comfortable viewing or rotate it 90 degrees for landscape or portrait viewing.

04

Easy Installation

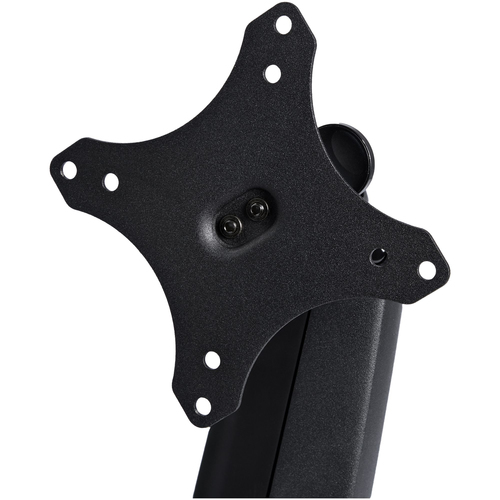

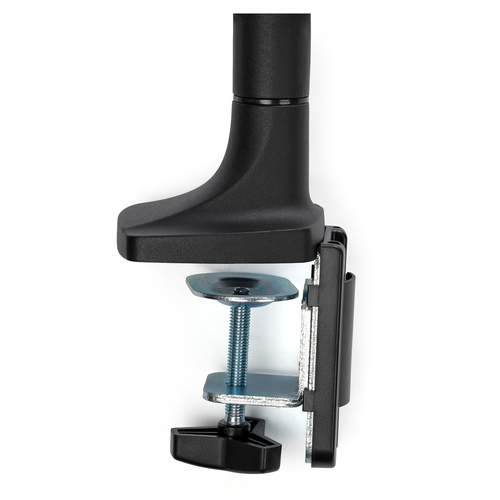

The VESA monitor mount is easy to install (desk C-clamp or grommet mount) and offers built-in cable management. The detachable VESA panel makes it simple to attach or remove your monitor.

ARMPIVOTHDB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Mounting

Maximum weight capacity
9 kg
Minimum screen size
33 cm (13")
Number of displays supported
1
Maximum screen size
81.3 cm (32")
Mounting
Clamp
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Desk thickness (min)
1 cm
Desk thickness (max)
8.5 cm

Ergonomics

Height adjustment
Yes
Height adjustment range
170 - 505 mm
Tilt angle range
-90 - 90°
Swivel angle
180°
Angle of rotation
180°
Pivot angle
-180 - 180°
Cable management
Yes
Rubber feet
Yes

Design

Product colour
Black

Weight & dimensions

Width
100 mm
Depth
290 mm
Height
530 mm
Weight
2.8 kg

Packaging data

Package width
492 mm
Package depth
323 mm
Package height
118 mm
Package weight
4.1 kg

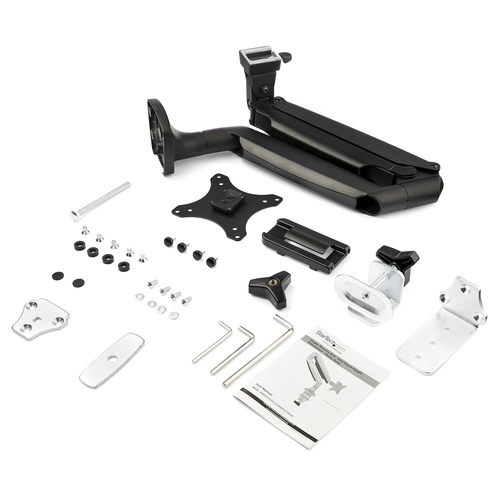

Packaging content

Wrench included
Yes
Wrench type
Hexagonal wrench
Clamp included
Yes
Mounting brackets included
Yes
Screws included
Yes
Number of screws
15
Number of washers included
4
Number of spacers included
4
Grommet base plate included
Yes
Grommet plate included
Yes
Manual
Yes

Other features

Compliance certificates
RoHS
Certification
CE

Logistics data

Master (outer) case width
512 mm
Master (outer) case length
355 mm
Master (outer) case height
486 mm
Products per master (outer) case
4 pc(s)
Harmonized System (HS) code
85299097
