StarTech.com ARMPIVOTE2 Drag to turn · 14 views
StarTech.comMonitor Mounts & Stands

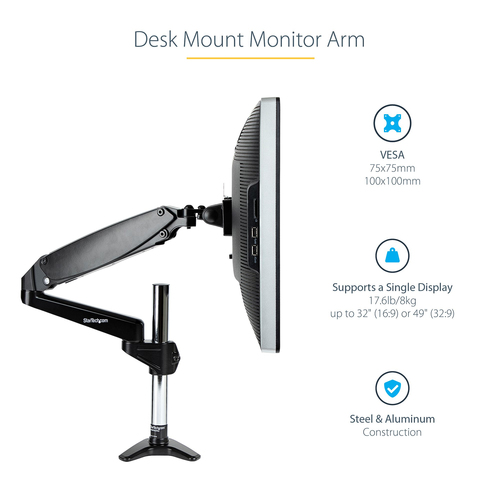

Desk Mount Monitor Arm for Single VESA Display up to 32" or 49" Ultrawide (17.6lb/8kg) - Full

Part # ARMPIVOTE2UPC 065030891691Warranty: 5 Years10.75 lb

  • VESA 75X75/100x100mm compatible monitor arm for single 17.6lb/8kg display up to 32" or up to 49" ultrawide (32:9)
  • Full motion articulation w/ +90/-90 DEG swivel +90/-85 DEG tilt 360 DEG rotate (portrait/landscape)
  • Gas spring assisted arm w/ one-touch height adjustability of up to 24" (610mm) from the desk
  • Extends up to 23.2" (590mm) from the pole
  • C-Clamp (up to 85mm) or grommet mount (up to 70mm)
  • Incl. adjustment tools
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 32" Monitors

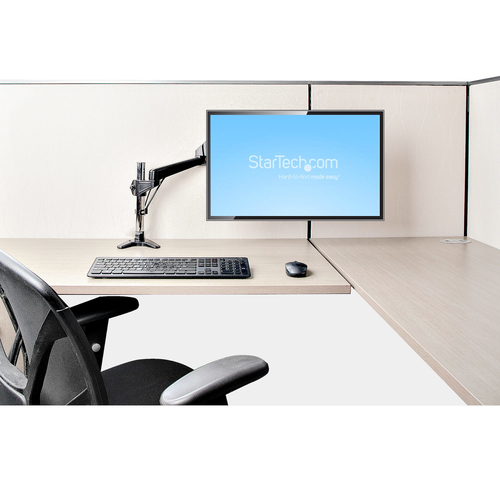

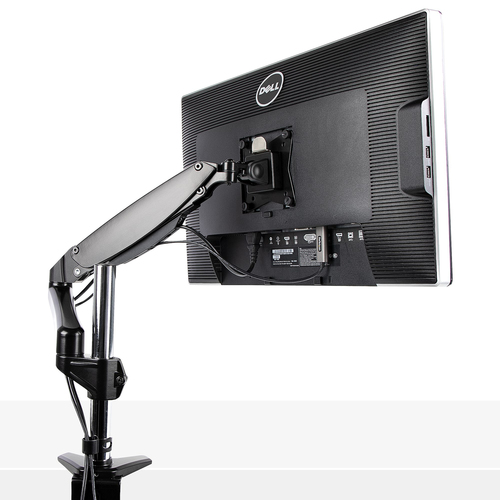

This desk mount monitor arm enables you to mount and raise a monitor with a maximum screen size of 32" (16:9) or 49" (32:9) ultrawide. Its solid steel construction allows this monitor arm to support up to 17.6lb (8kg) with two mounting options (C-Clamp or Grommet mount) to securely attach your monitor to your desk.

01

Full Motion Articulation

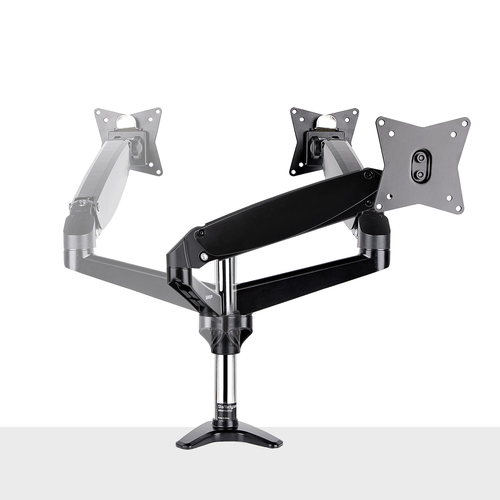

Setup an ergonomic work environment and reclaim valuable workspace on your desk. The adjustable monitor mount lets you extend the arm a full 23.2" (590mm) from the pole. The full motion arm moves freely provides a wide range of motion across multiple axes. You can tilt the monitor +90/-85 degrees, swivel +90/-90 degrees, and even rotate 360 degrees, to find the ideal viewing angle. Switch back and forth from landscape to portrait orientation at any time. Featuring spring-assisted height adjustment, the display mount lets you raise or lower your monitor up to 13.4" (341mm) with smooth, and effortless positioning by hand. Additional adjustments with the included tools allow you to raise the monitor arm along the pole for a maximum height of 24" (610 mm) from the mounting surface.

02

Organized Workspace

This single desk monitor arm enables you to free up space by letting you mount your monitor to your desk, table, or countertop. In addition, it features integrated cable management channels along the arm, and cable management clips to route your cables and maintain an organized and professional look on your workstation.

03

Easy Installation

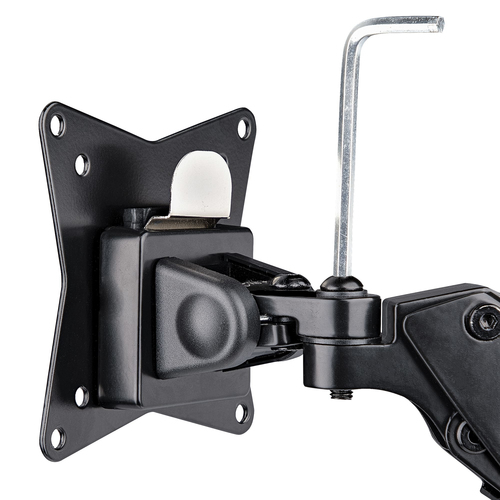

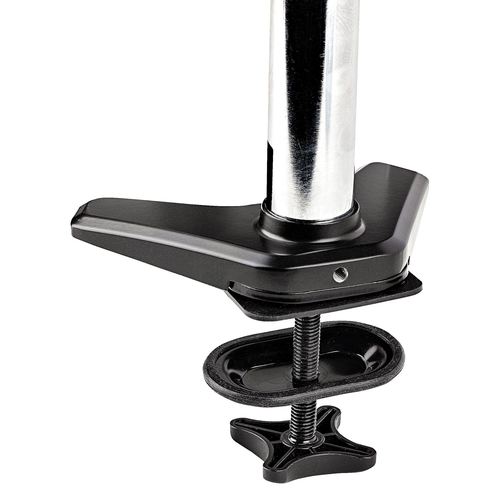

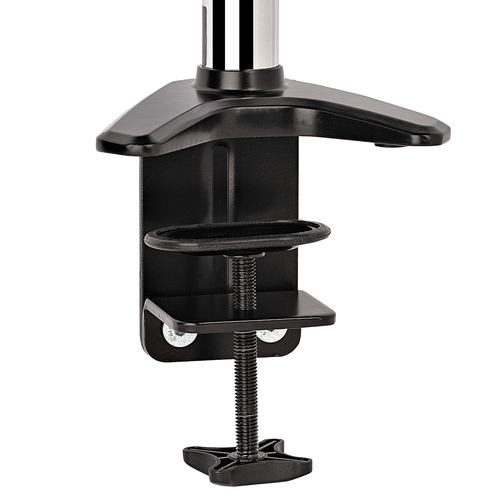

With the detachable VESA plates with quick-release clips, you can mount your display to the mount with ease. Either clamp the mount to the side of a desk up to 85mm thick, table or mount it through a grommet hole on desks up to 70mm thick.

Specifications

Mounting

Maximum weight capacity
8 kg
Minimum screen size
81.3 cm (32")
Number of displays supported
1
Maximum screen size
124.5 cm (49")
Mounting
Clamp
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Desk thickness (min)
0 mm
Desk thickness (max)
8.5 cm

Ergonomics

Tilt angle range
-85 - 90°
Swivel angle range
-90 - 90°
Angle of rotation
360°
Cable management
Yes

Design

Product colour
Black
Anti-theft function
No

Weight & dimensions

Width
290 mm
Depth
485 mm
Height
140 mm
Weight
4.2 kg

Packaging data

Package width
516 mm
Package depth
291 mm
Package height
151 mm
Package weight
4.2 kg

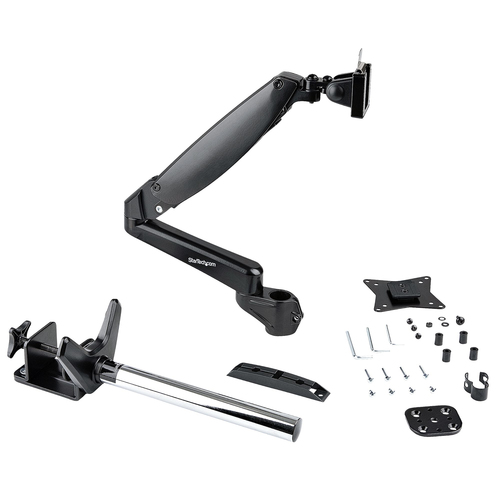

Packaging content

Wrench type
Hexagonal wrench
VESA mount included
Yes
Number of cable clips
1
Screws included
Yes
Number of screws
11
Number of spacers included
4
Grommet plate included
Yes
Manual
Yes

Logistics data

Master (outer) case width
534 mm
Master (outer) case length
305 mm
Master (outer) case height
317 mm
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
85299097
