1U 4-Post Adjustable Vented Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to 38in Adjustable
- Add a high capacity adjustable depth vented shelf into almost any 4-post server rack or cabinet
- Compatible with 4POSTRACKBK
- 1U Vented Adjustable Server Rack Mount Shelf
- Max 330lbs (150kg)- 27.6in (700mm) deep shelf

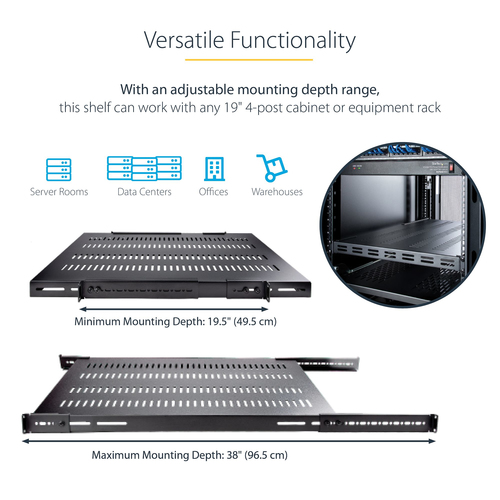

- Mounting depth adjustable from 19.5-38.3in (495-974mm)
- Universal rack shelf fits all standard 19in wide server racks or cabinets
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add an adjustable depth vented shelf into almost any 4-Post server rack or cabinet
The ADJSHELFHDV 1U 4-Post Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch 4-post server rack or cabinet.

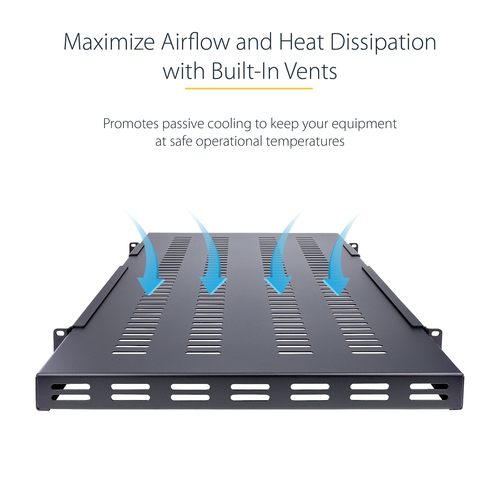

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The ADJSHELFHDV is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Features
- Type
- Adjustable shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 150 kg
- Rack capacity
- 1U
- Country of origin
- China
Weight & dimensions
- Width
- 483 mm
- Depth
- 700 mm
- Height
- 44 mm
- Material thickness
- 1.2 mm
- Mounting depth (min)
- 49.5 cm
- Mounting depth (max)
- 97.4 cm
- Weight
- 5.7 kg
Packaging data
- Package width
- 764 mm
- Package depth
- 552 mm
- Package height
- 118 mm
- Package weight
- 6.8 kg
Packaging content
- Mounting kit
- Yes
- Screws included
- Yes
- Number of screws
- 16
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Washers included
- Yes
- Number of washers included
- 8
Technical details
- Sustainability compliance
- Yes
- Compliance certificates
- RoHS, CE
Logistics data
- Master (outer) case width
- 786 mm
- Master (outer) case length
- 608 mm
- Master (outer) case height
- 581 mm
- Products per master (outer) case
- 5 pc(s)
- Harmonized System (HS) code
- 85389099
