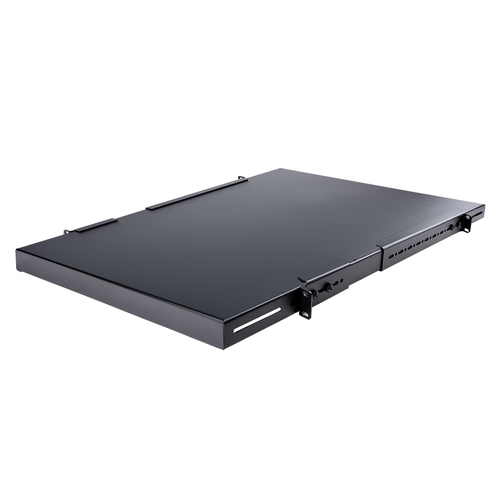

1U 4-Post Adjustable Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to 38in Adjustable Mounting
- Add a high capacity adjustable mount depth fixed shelf into almost any 4-post server rack or cabinet
- Compatible with 4POSTRACKBK
- 1U Server Rack Shelf/Adjustable Rack Mount Shelf
- 330lbs (150kg) Weight capacity
- 27.6in (700mm) deep shelf
- Mounting depth adjustable from 19.5-38.3in (495-974mm)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

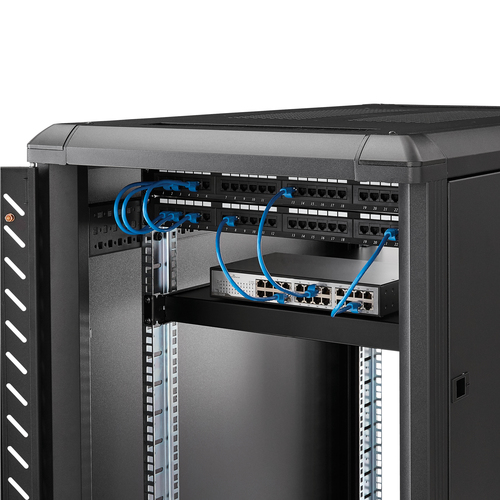

Add a high capacity, adjustable depth fixed shelf into almost any 4-Post server rack or cabinet

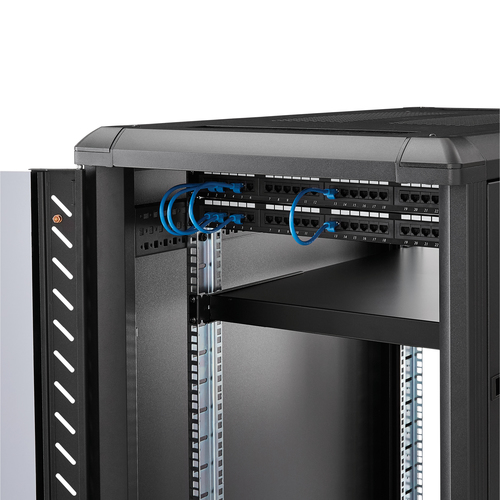

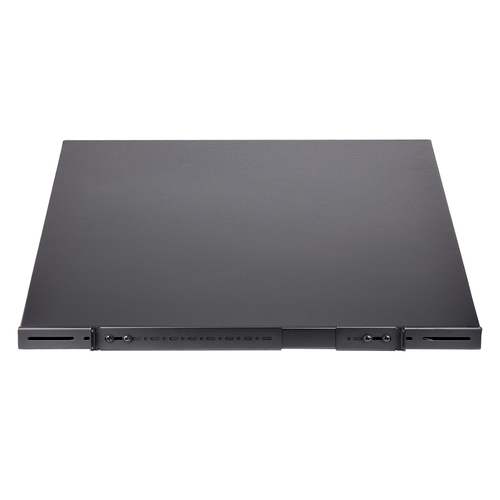

The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet.

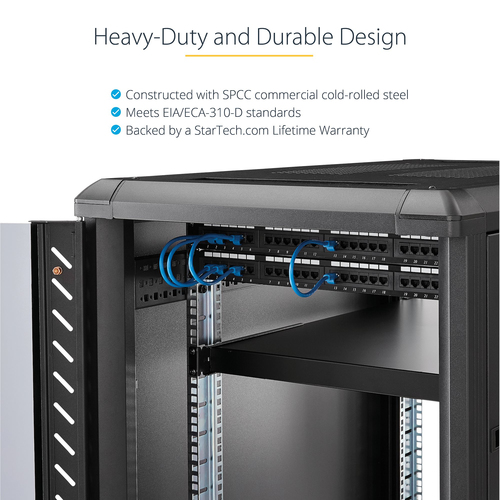

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Features
- Type
- Adjustable shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 150 kg
- Rack capacity
- 1U
- Compliance industry standards
- EIA RS310-D
- Country of origin
- China

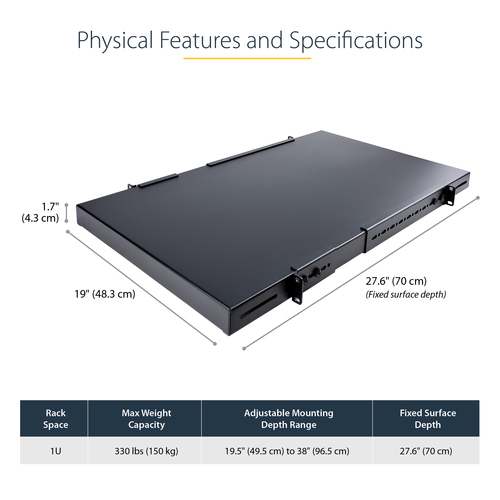

Weight & dimensions
- Width
- 483 mm
- Depth
- 700 mm
- Height
- 44 mm
- Material thickness
- 1 mm
- Mounting depth (min)
- 49.5 cm
- Mounting depth (max)
- 97.4 cm
- Weight
- 6.2 kg
Packaging data
- Package width
- 764 mm
- Package depth
- 538 mm
- Package height
- 113 mm
- Package weight
- 6.8 kg

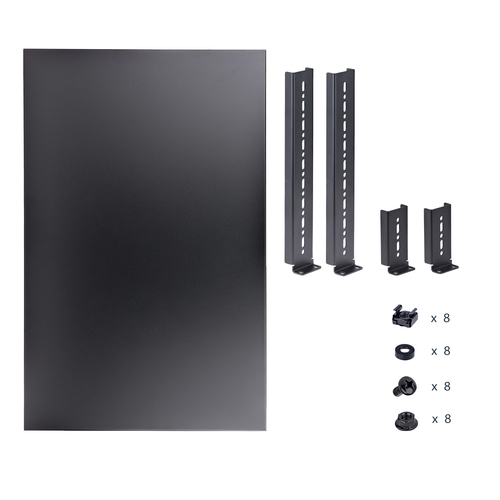

Packaging content
- Mounting kit
- Yes
- Quick installation guide
- Yes
- Screws included
- Yes
- Number of screws
- 16
- Cage nuts included
- Yes
- Number of cage nuts
- 8
- Washers included
- Yes
- Number of washers included
- 8
Technical details
- Sustainability compliance
- Yes
- Compliance certificates
- CE, RoHS
Logistics data
- Master (outer) case width
- 784 mm
- Master (outer) case length
- 555 mm
- Master (outer) case height
- 578 mm
- Products per master (outer) case
- 5 pc(s)
- Harmonized System (HS) code
- 85389099
