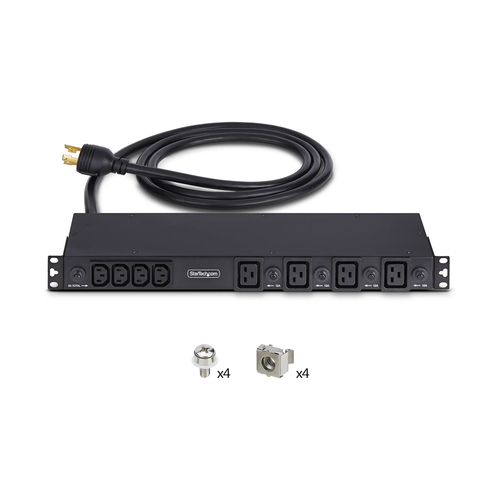

20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, 8x Front and 12x Rear Outlets
- 1U rack-mounted PDU unit with 20x electrical outlets

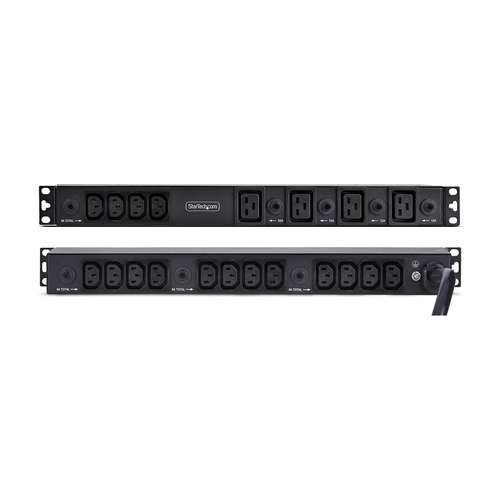

- 16x IEC C13 outlets (4x front / 12x rear) and 4x front IEC C19 outlets
- 240V max 30A

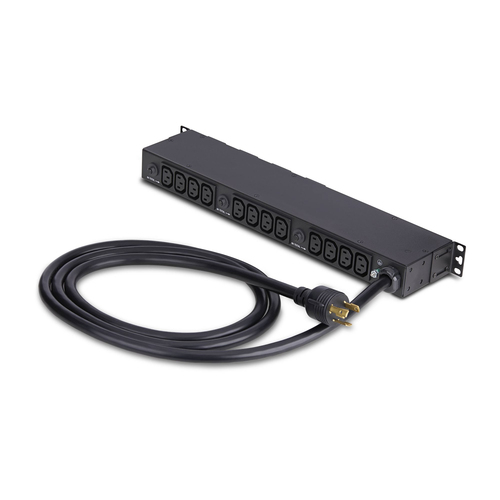

- Built-in 8ft NEMA L6-30P power cord
- Rackmount power distribution strip includes 4-way mounting brackets
- User-resettable 15A breakers safeguard each IEC C19 outlet and every group of four IEC C13 ports
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

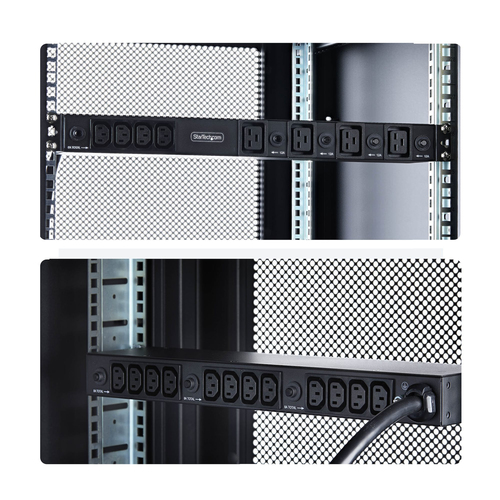

Add twenty power outlets to a 19in server rack or cabinet
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U 20-port rackmount PDU features IEC C13 and IEC C19 outlets, built-in circuit breakers, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity in High-Density Racks

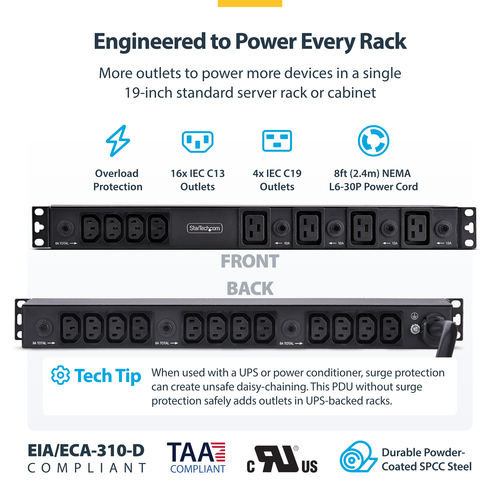

Designed for dense IT and AV environments, this unit powers up to 20 devices through 16 IEC C13 outlets (4x front / 12x rear) and 4x IEC C19 outlets (front). The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-In Circuit Protection for Critical Hardware

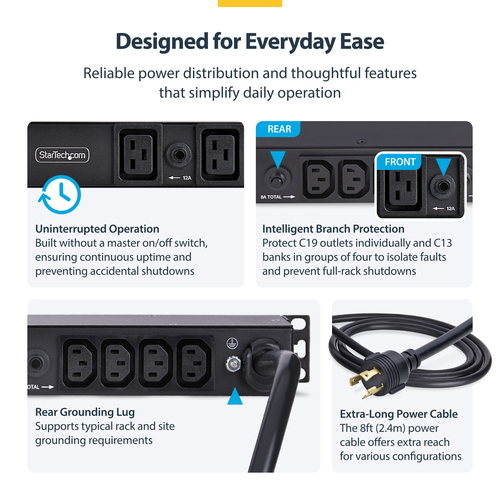

User-resettable 15A breakers safeguard each IEC C19 outlet individually and every group of four IEC C13 outlets. If the total current draw exceeds safe operating limits, the integrated circuit breakers automatically cut power to prevent damage to the equipment.

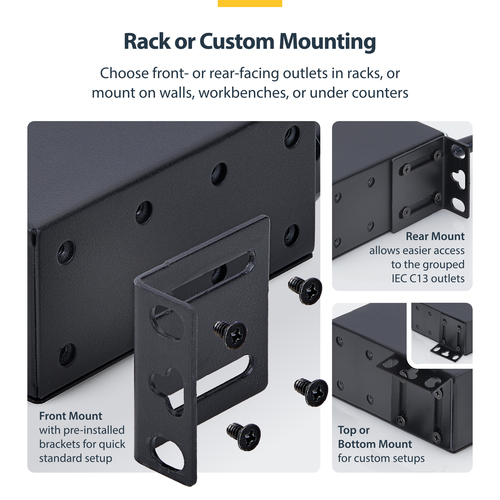

Flexible Mounting
Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 1U
- Housing material
- Steel
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 20 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
Features
- Cable length
- 2.4 m
Power
- Nominal input voltage
- 200-240 V
- Maximum current
- 30 A
- Nominal output voltage
- 200-240 V
- Maximum input current per phase
- 24 A
- Maximum total current draw per phase
- 30 A
- Circuit breaker
- Yes
Weight & dimensions
- Width
- 43.3 mm
- Depth
- 500 mm
- Height
- 95.2 mm
- Weight
- 3.34 kg

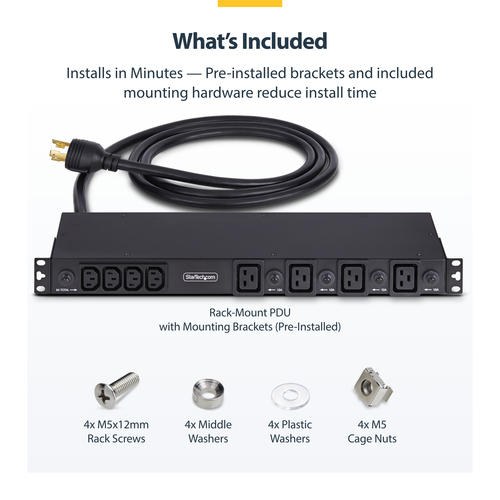

Packaging content
- Manual
- Yes
- Screws included
- Yes
- Number of screws
- 4
- Screw nuts included
- Yes
- Number of screw nuts
- 4
- Rack mount kit
- Yes
Packaging data
- Package weight
- 3.6 kg
- Package width
- 511 mm
- Package depth
- 281 mm
- Package height
- 76 mm
Logistics data
- Master (outer) case width
- 528 mm
- Master (outer) case length
- 500 mm
- Master (outer) case height
- 299 mm
- Products per master (outer) case
- 4 pc(s)
