UL Listed Extendable TV Wall Mount for up to 105inch 176lb (80kg) Display, Easy Rear Access

Part # 10ULE-TV-WALL-MOUNTUPC 065030922999Warranty: 5 Years14.87 lb

TV mount supports up to 105-inch displays and 176lb for meeting rooms classrooms and digital signage
TV mount is tested and certified by UL Solutions to UL 2442 and complies with a 4x weight safety factor over its rated load
Extendable arms reach 6.8in for rear TV access or collapse to a 2.1in profile
Side to side sliding design helps center on wood studs concrete or brick walls
Supports VESA 200x200 to 100x600
Adjustable bracket tilts +10 to -15deg and swivels +10 to -10deg

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Mount a TV to a wall and retain rear access with this extendable, VESA-compatible mount for displays up to 105in

Mount a TV with extendable reach or a slim close-to-wall profile, plus adjustable viewing angles. UL Listed for added confidence in commercial or public installations.

Securely Mount Large, Heavy Displays

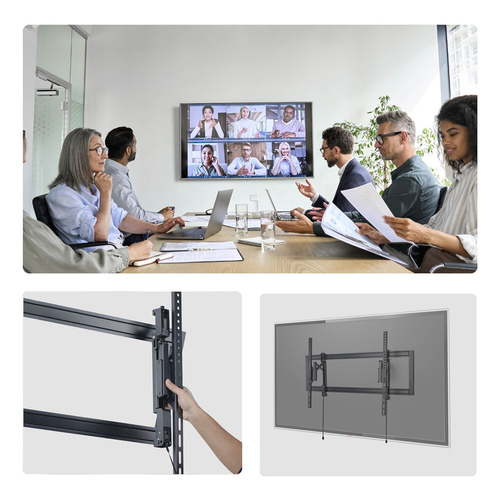

Support TVs up to 105-inch and 176lb (80kg) for meeting rooms, classrooms, and digital signage deployments that need a strong, stable wall bracket.

Mount with Confidence

This TV mount is tested and certified by UL Solutions to UL 2442 and complies with a 4x weight safety factor over its rated load, providing assurance for commercial and public-space installations

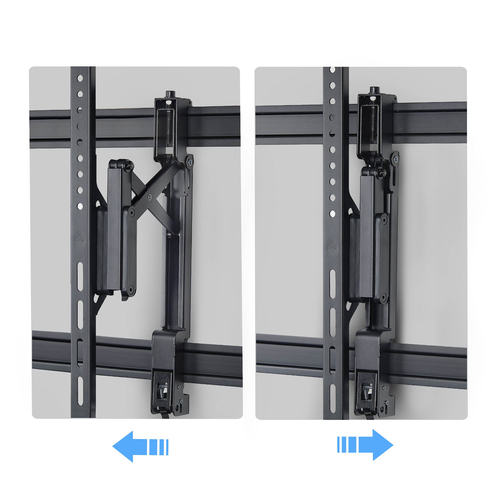

Save Space or Extend When Needed

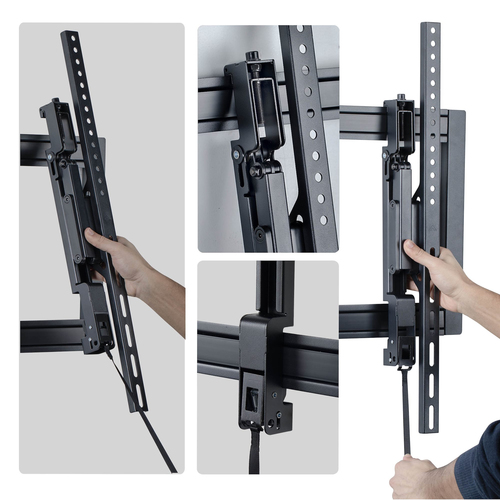

Keep the TV close to the wall at a 2.1in (5.3cm) profile or extend up to 6.8in (17.2cm) to match your setup. Extra extension creates working room for easy rear access during adjustments, maintenance, and cable management.

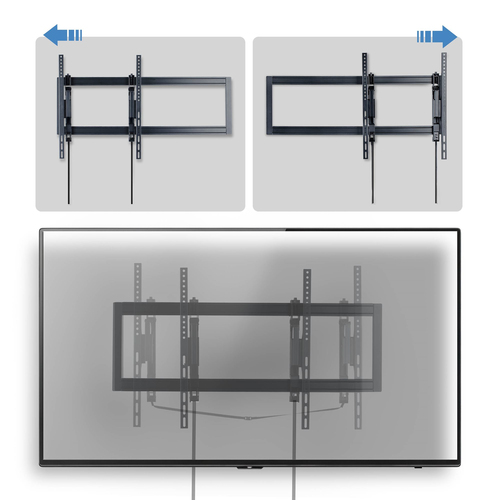

Center the TV on Any Wall Type

Use the side-to-side sliding design to help center the display on wood stud, concrete, or brick walls. VESA compatibility from 200x200 to 1000x600mm helps standardize installs across a wide range of TVs.

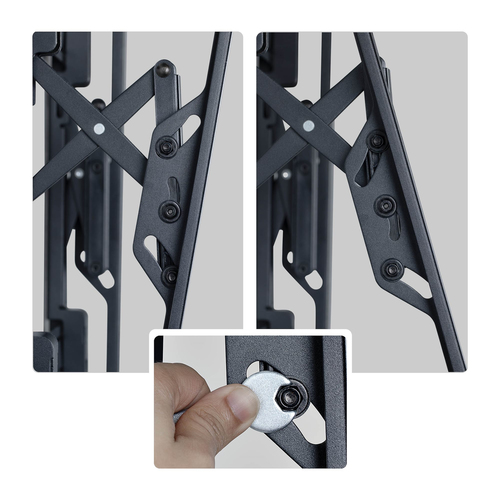

Adjust the Screen for Better Viewing

Fine-tune the viewing angle with tilt from +10° to -15° and swivel from +10° to -10° to improve visibility across the room.

Specifications

Mounting

Maximum weight capacity: 80 kg
Minimum screen size: 139.7 cm (55")
Number of displays supported: 1
Maximum weight capacity (per display): 80 kg
Maximum screen size: 2.67 m (105")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 1000 x 600 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,600 x 600,800 x 400,800 x 600,900 x 600,1000 x 600
Mounting type: Wall
