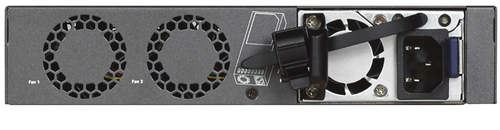

XSM4316PB Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

Part # XSM4316PB-100NESUPC 60644914098911.25 lb

16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
320Gbps non-blocking fabric across 16 ports
Out-of-band 1G Ethernet management port
Mini-USB and RJ45 RS232 console ports and USB storage port
Full L3 feature set and non-stop forwarding (NSF) stacking
Half-width form factor with one- and two-unit rack mount kit

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Link aggregation: Yes
Auto-sensing: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4093

Data transmission

Switching capacity: 320 Gbit/s
Throughput: 238 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Number of queues: 8
Number of static routes: 64
Jumbo frames support: Yes
Jumbo frames: 9000

Security

DHCP features: DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, MAC-based authentication
