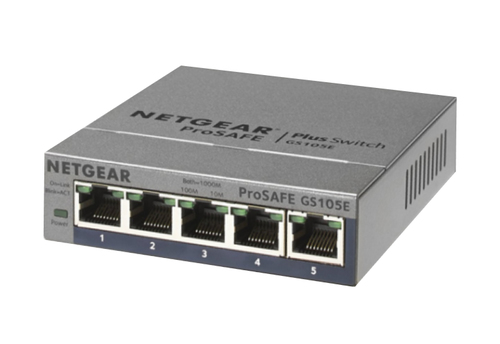

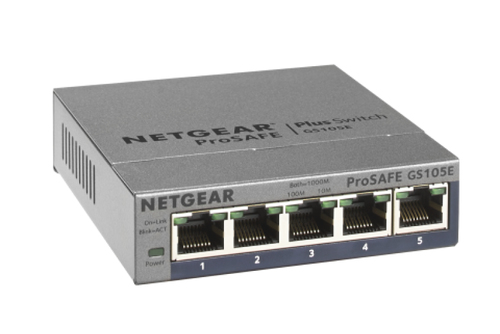

5-Port Gigabit Ethernet Plus Switch (GS105Ev2)
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 10 Gbit/s
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Gigabit Plus Switch Series (GS105Ev2)
5-Port Gigabit Plus Switch
NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
More Capabilities beyond Plug-and-play Connectivity
Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced
training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate
connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN
- Number of VLANs
- 64
Data transmission
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.4 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Latency (1 Gbps)
- 2.45 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 0.4 MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 128
Design
- Rack mounting
- No
- Product colour
- Grey
- Housing material
- Metal
- LED indicators
- Yes
Performance
- Mean time between failures (MTBF)
- 2531294 h
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (typical)
- 5.6 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Weight & dimensions
- Width
- 94 mm
- Depth
- 101 mm
- Height
- 26 mm
- Weight
- 270 g
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- User guide
- Yes
- Manual
- Yes
Packaging data
- Package width
- 155 mm
- Package depth
- 239 mm
- Package height
- 63 mm
- Package weight
- 570 g
Technical details
- Shipping (inner) case height
- 28 cm
- Shipping (inner) case width
- 49.7 cm
- Shipping (inner) case length
- 34.4 cm
- Shipping (inner) case net weight
- 9.92 kg
- Products per shipping (inner) case
- 15 pc(s)
- Master (outer) cases per pallet layer
- 6 pc(s)
- Layers per pallet (air)
- 4 pc(s)
- Layers per pallet (sea)
- 7 pc(s)
Certificates
- Certification
- CE,CSA (CSA 22.2 #950), UL (UL 1950)/cUL IEC 950/EN 60950, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC
