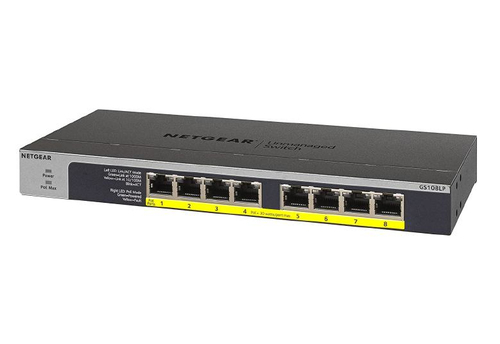

NETGEAR GS108LP-100NAS Drag to turn · 5 views
NETGEARNetwork Switches

8-PORT Gigabit Ethernet POE+ Unmanaged Switch with 60W POE Budget (GS108 Gigabit Ethernet

Part # GS108LP-100NASUPC 6064491349573.25 lb

  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 4000 entries Switching capacity: 16 Gbit/s
  • 1U Rack mounting
  • Power over Ethernet (PoE)
In stockPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Instant Connectivity with Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

01

High quality components and Energy Efficiency

NETGEAR switches are built with top quality components to assure a long life. They are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.

02

PoE+ Support

Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power. All models have a built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch.

The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included).

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Flow control support
Yes

Data transmission

Switching capacity
16 Gbit/s
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black, Grey
LED indicators
Yes
Wall mountable
Yes
Number of fans
0 fan(s)

Performance

Mean time between failures (MTBF)
2752476 h

Power

DC input voltage
54 V
Input current
1.25 A
Power consumption (typical)
67.5 W
Power consumption (max)
130 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 1000 m
Heat dissipation
230.85 BTU/h

Weight & dimensions

Width
236 mm
Depth
102 mm
Height
27 mm
Weight
600 g
