Home/Catalogue/NETGEAR/XS724TM-100NAS
Drag to turn · 6 views
NETGEARNetwork Switches

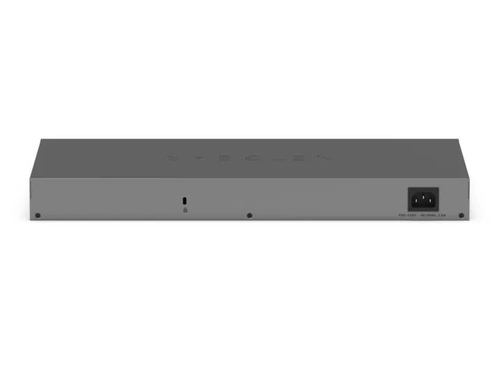

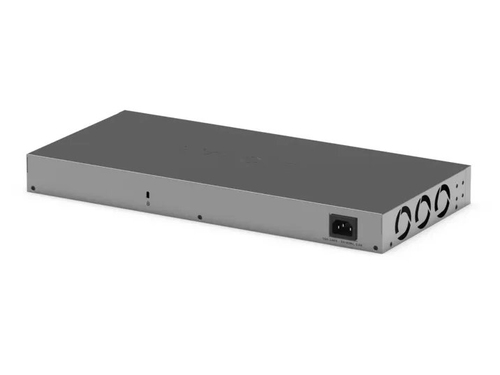

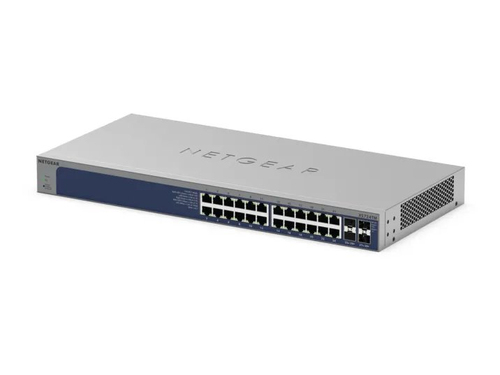

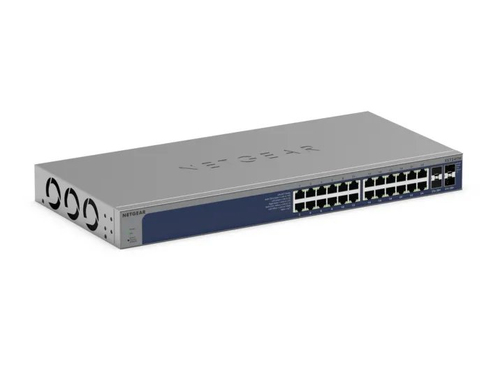

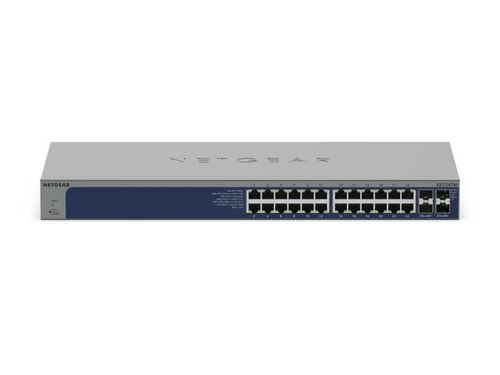

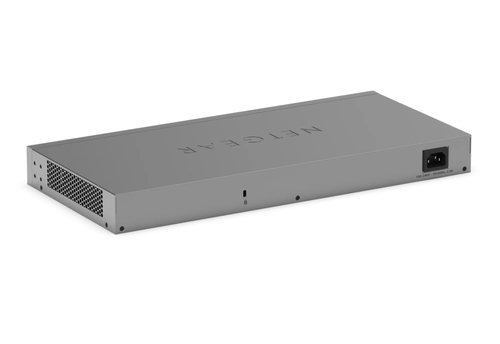

XS724TM Managed L2/L3/L4 10G Ethernet (100/1000/10000) 1U Grey
- Energy Efficient Ethernet for maximum power savings
- Quiet desktop or rackmount placement
- Configurable L2+/Lite L3 network features
- 1-year of NETGEAR Insight Cloud Management included
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
01
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- 10G Ethernet (copper) ports quantity
- 10
- SFP module slots quantity
- 4
Network
- 10G support
- Yes
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Routing entries
- 64
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- IPv4 routes
- 64
- IPv6 routes
- 32
- VLAN support
- Yes
- Number of VLANs
- 512
Data transmission
- Switching capacity
- 560 Gbit/s
- MAC address table
- 16000 entries
- Number of queues
- 8
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP client, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
- Access Control List (ACL)
- Yes
- Access Control List (ACL) IPv6 entries
- 100
- IGMP snooping
- Yes
- Security algorithms
- EAP, 802.1x RADIUS
Multicast features
- Multicast Listener Discovery (MLD) snooping
- v1 & v2
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Grey
- LED indicators
- Yes
- Number of fans
- 2 fan(s)
Performance
- Built-in processor
- Yes
- Processor frequency
- 1250 MHz
- Memory type
- RAM
- Internal memory
- 1024 MB
- Flash memory
- 256 MB
- Noise level
- 29.61 dB
- Firmware upgradeable
- Yes
- Mean time between failures (MTBF)
- 408354.7 h
Power
- Power source
- AC
- Power supply included
- Yes
- Power consumption (max)
- 92.5 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 315.66 BTU/h
Weight & dimensions
- Width
- 400 mm
- Depth
- 204 mm
- Height
- 43.2 mm
- Weight
- 3.38 kg
Downloads
