NETGEARNetwork Switches

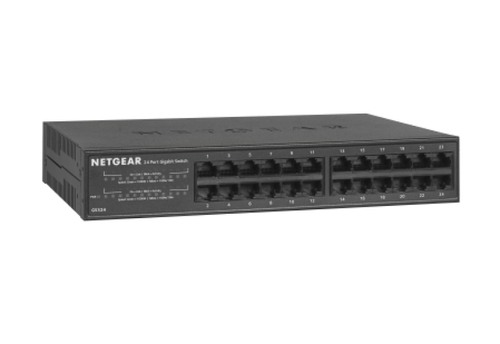

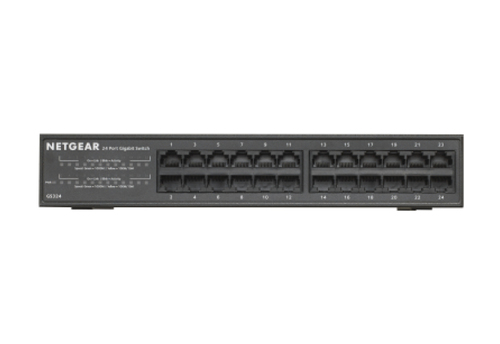

GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Desktop, wall or rackmountable
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.
01
PLUG & PLAY
Simple setup with no software or configuration needed.
02
FLEXIBLE MOUNTING
Mount on rack, desktop, or wall.
03
SMALL SIZE, METAL CASE, AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind.
04
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
- 10G support
- No
- Cable types supported
- Cat5
- Auto MDI/MDI-X
- Yes
- Auto-sensing
- Yes
Data transmission
- Switching capacity
- 48 Gbit/s
- MAC address table
- 8000 entries
- Latency (1 Gbps)
- 4.7 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet forwarding rate (1 Gbps)
- 1448000 pps
- Packet buffer memory
- 0.512 MB
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Activity, Link, Power, Speed
- Wall mountable
- Yes
Performance
- Fanless
- Yes
- Mean time between failures (MTBF)
- 1016877 h
Power
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 0.7 A
- Power consumption (typical)
- 4.33 W
- Power consumption (max)
- 12.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 41.2 BTU/h
Weight & dimensions
- Width
- 252 mm
- Depth
- 180 mm
- Height
- 44 mm
- Weight
- 1.21 kg
Packaging content
- Cables included
- AC
- Manual
- Yes
Certificates
- Certification
- CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD
