Home/Catalogue/TP-Link/ES228GP
Drag to turn · 5 views
TP-LinkNetwork Switches
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ PORT: 24 Gigabit PoE+ Ports, 2x Gigabit
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 26
- MAC address table: 8000 entries Switching capacity: 56 Gbit/s
- Rack mounting
- AC Power over Ethernet (PoE)
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
01
Surveillance
Works with IP Cameras
02
Wi-Fi Coverage
Works with Access Points
03
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- VLAN support
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
Data transmission
- Switching capacity
- 56 Gbit/s
- Forwarding rate
- 41.67 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Number of queues
- 8
- Jumbo frames support
- Yes
- Jumbo frames
- 15000
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Loop protection
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
Design
- Rack mounting
- Yes
- Product colour
- Black
- Number of fans
- 2 fan(s)
Power
- Power source
- AC
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 4 A
- Power protection features
- Surge protection
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet (PoE) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 250 W
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 440 mm
- Depth
- 180 mm
- Height
- 44 mm
Packaging content
- Cables included
- AC
- Manual
- Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Downloads
More in Switches 18 to 24 Ports

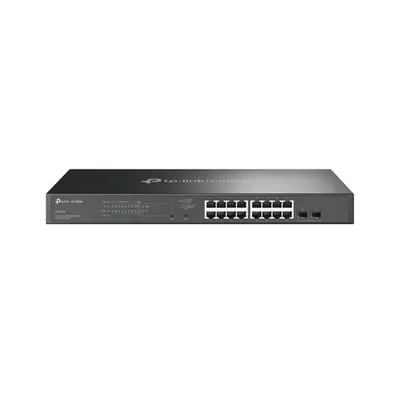

TP-LinkJetStream 18Port Gigabit Smart Switch with 16Port PoE+ PORT: 16 GigabiSG2218P
TP-LinkOmada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with SG3428XPP-M2

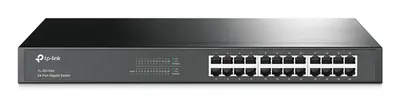

TP-Link24-port Gigabit Green Switch,1U 19-inch rack-mountable steel caseTL-SG1024
TP-LinkFull Gigabit Ports: 24 gigabit RJ45 ports and 4 gigabit SFP Slots provSG3428

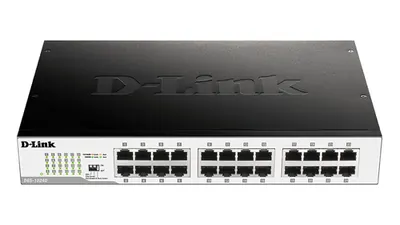

D-LinkThe D-Link DGS-1024D, 24-Port 10/100/1000Mbps Unmanaged Rackmount/DeskDGS-1024D

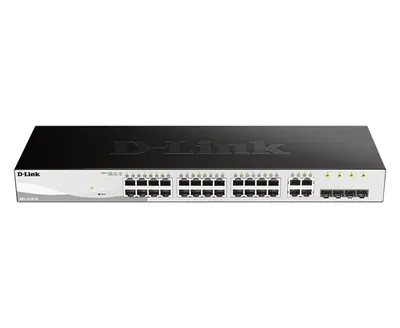

D-LinkWebSmart 24-Port Gigabit Switch with 4 SFPDGS-1210-28

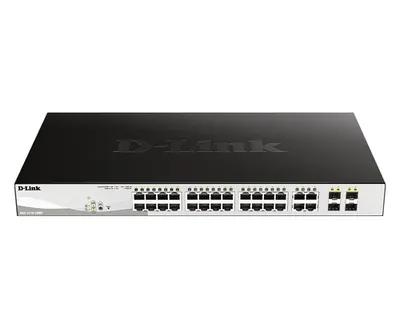

D-LinkWebSmart 24-Port Gigabit PoE Switch with 4 SFPDGS-1210-28P
