Home/Catalogue/NETGEAR/XS516TM-100NAS
Drag to turn · 5 views
NETGEARNetwork Switches

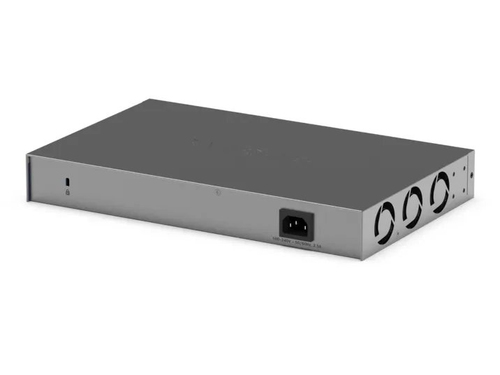

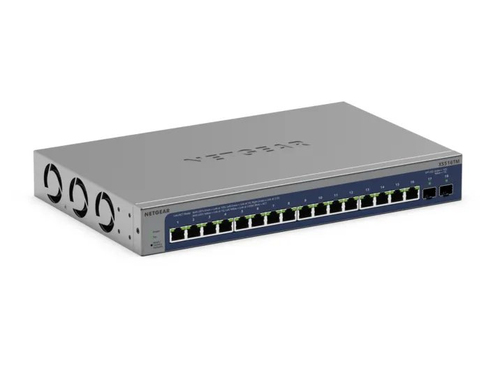

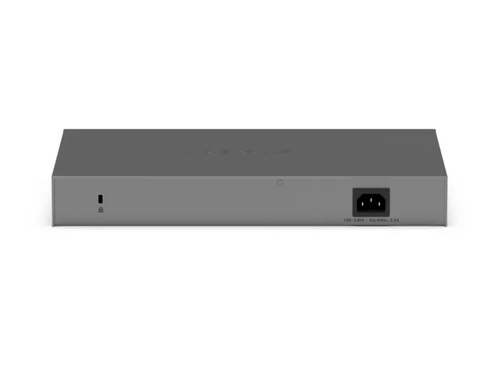

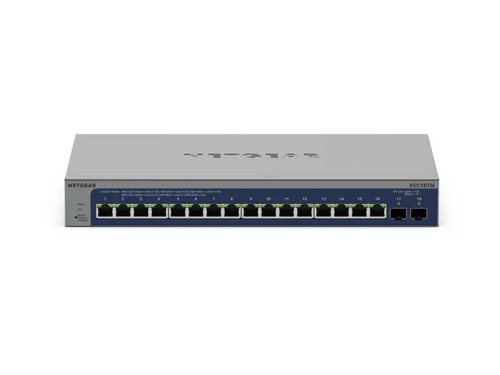

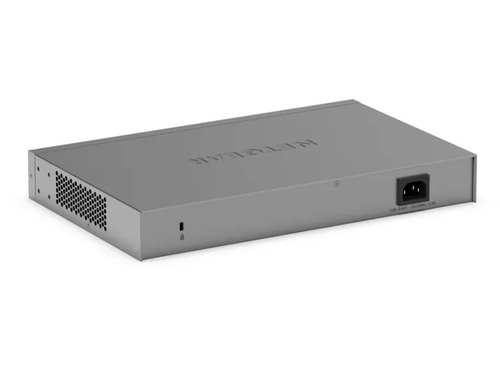

XS516TM Managed L2/L3/L4 10G Ethernet (100/1000/10000) 1U Grey, Blue
- 16 x 10G/Multi-Gigabit ports with 2 dedicated 10G SFP+ ports
- Energy Efficient Ethernet for maximum power savings
- Desktop, wall mount or rack mount placement
- Configurable L2+/L3 Lite network features
- 1-year of NETGEAR Insight Cloud Management included
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
01
NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
- MIB support
- Y
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- 10G Ethernet (copper) ports quantity
- 16
- SFP+ module slots quantity
- 2
Network
- 10G support
- Yes
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Head-of-line (HOL) blocking
- Yes
- Ethernet LAN data rates
- 10,100,1000,1200,5000,10000 Mbit/s
- VLAN support
- Yes
- Number of VLANs
- 512
Data transmission
- Switching capacity
- 360 Gbit/s
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Latency (1 Gbps)
- 2.17 µs
- Latency (10 Gbps)
- 2.2 µs
- Static route
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP client, DHCP snooping, DHCP relay, DHCP server
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- Loop protection
- Yes
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Grey, Blue
- Number of fans
- 3 fan(s)
Performance
- Built-in processor
- Yes
- Processor frequency
- 1.25 MHz
- Memory type
- RAM
- Internal memory
- 1024 MB
- Flash memory
- 256 MB
- Noise level
- 27.35 dB
- Mean time between failures (MTBF)
- 506741.9 h
Power
- Power source
- AC
- Power supply included
- Yes
- Power consumption (max)
- 63.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 221.3 BTU/h
Weight & dimensions
- Width
- 330 mm
- Depth
- 206 mm
- Height
- 43 mm
- Weight
- 2.45 kg
Packaging data
- Package type
- Box
Downloads
