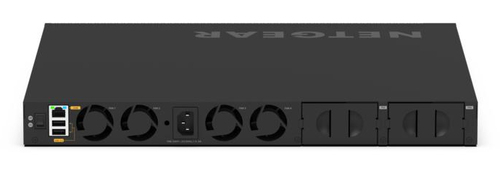

MSM4332 Managed L3 Power over Ethernet (PoE) 1U Black
- 420W internal power supply.
- 1 slot for modular power supply (1+1 redundancy).
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus™, NETGEAR AV OS, and Engage Controller speed up AV installations.
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 28
- Fiber ports quantity
- 4
- Fiber optic connector
- SFP28
- Console port
- USB
- SFP28 ports quantity
- 4
Network
- 10G support
- Yes
- Copper ethernet cabling technology
- 2.5GBASE-T, 10GBASE-T
Data transmission
- Switching capacity
- 400 Gbit/s
- Jumbo frames support
- Yes
Security
- IGMP snooping
- Yes
- IGMP proxy
- Yes
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Black
Performance
- Memory type
- DDR4-SDRAM
- Internal memory
- 4000 MB
- Noise level
- 66 dB
Power
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
- Power over Ethernet (PoE) ports quantity
- 28
- Total Power over Ethernet (PoE) budget
- 2520 W
Weight & dimensions
- Width
- 440 mm
- Depth
- 400 mm
- Height
- 43.2 mm
- Weight
- 7.38 kg
Packaging content
- Cables included
- AC, USB
- Manual
- Yes
- Rack mount kit
- Yes
