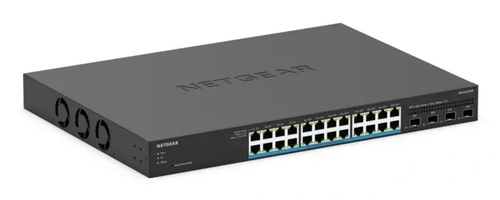

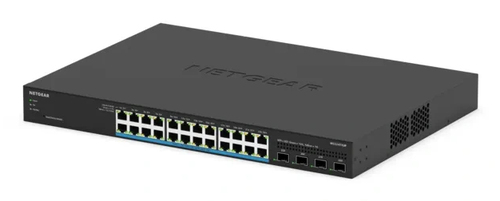

MS324TXUP Managed L2/L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

Part # MS324TXUP-100NASUPC 60644916525813.55 lb

Managed L2/L2+ Web-based management SNMP v1/v2c/v3, RMON, HTTP, HTTPS
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24
Cat5e, Cat6, Cat6a 10G support 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T
MAC address table: 32000 entries Switching capacity: 240 Gbit/s
1000 Access Control List (ACL)

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

Built on your feedback. Designed for the way you work.

NETGEAR Insight 10.0—a smarter, simpler way to deploy, monitor, and manage your network.

Specifications

Management features

Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
Traffic classification: Yes
Traffic shaping: Yes
ARP inspection: Yes
System event log: Yes
MIB support: RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interfaces MIB, RFC 2618 RMON MIB

Ports & interfaces

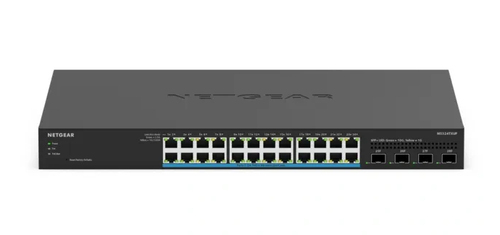

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 24
Installed SFP+ modules quantity: 4
SFP+ module slots quantity: 4
Number of management ports: 1 pc(s)
Fiber ports quantity: 4
Fiber optic connector: SFP+
Power cables quantity: 1

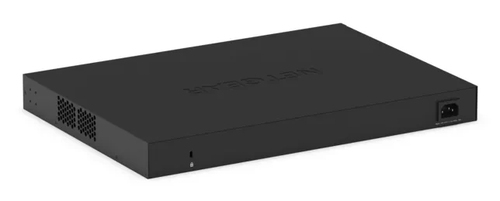

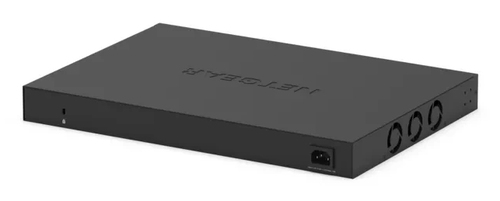

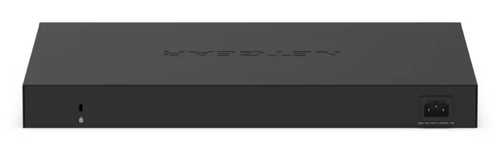

Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T
Cable types supported: Cat5e, Cat6, Cat6a
Port mirroring: Yes
Full duplex: Yes
IP routing: Yes
Routing entries: 32
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
Auto-sensing: Yes
Auto-negotiation: Yes
Active link detection: Yes
Cable length detection: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes
IPv4 routes: 32
IPv6 routes: 32
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Voice VLAN
Number of VLANs: 256

Data transmission

Switching capacity: 240 Gbit/s
Throughput: 178.56 Mpps
Throughput: 240 Gbit/s
Forwarding rate: 178.56 Mpps
MAC address table: 32000 entries
Store-and-forward: Yes
Latency (10-100 Mbps): 3.8 µs
Latency (1 Gbps): 2.6 µs
Latency (10 Gbps): 1.4 µs
Number of trunks: 8
Number of queues: 8
Static route: Yes
Number of static routes: 32
Number of IP interfaces: 32
Jumbo frames support: Yes
Jumbo frames: 12000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 2 MB

Security

DHCP features: DHCP snooping
Access Control List (ACL): Yes
Access Control List (ACL) rules: 1000
Access Control List (ACL) IPv4 entries: 100
Access Control List (ACL) IPv6 entries: 100
IGMP snooping: Yes
IGMP entries: 512
Security algorithms: 802.1x RADIUS, TACACS+, HTTPS, SNMPv3
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Password protection: Yes
Authentication type: RADIUS, IEEE 802.1x
Queue scheduling algorithms: Weighted Round Robin (WRR), Strict Priority Queue (SPQ)

Multicast features

Multicast support: Yes
Multicast MAC address table: 512 entries
IPv4 multicast entries: 512
IPv6 multicast entries: 512
Number of multicast groups filtered: 512
MLD entries: 512

Protocols

Management protocols: SNMP v1/v2c/v3, RMON, HTTP, HTTPS
Switching protocols: STP, RSTP, MSTP, LACP, LLDP
Supported network protocols: IPv4, IPv6
IPv4 FIB entries: 32
IPv6 FIB entries: 32
IP Source Guard (IPSG): Yes

Design

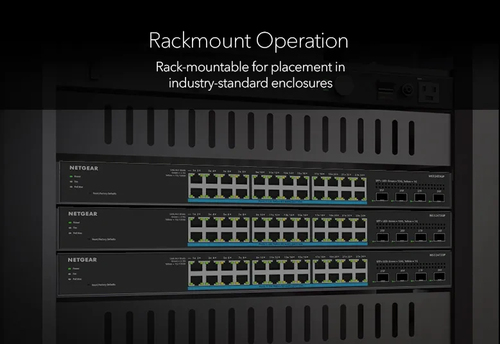

Rack mounting: Yes
Stackable: No
Form factor: 1U
Product colour: Black
Housing material: Metal
Reset button: Yes
LED indicators: Yes
International Protection (IP) code: IP20
Airflow direction: Side-to-side airflow
Market segment: Business
Version: MS324TXUP
Electromagnetic compatibility: CE, FCC Part 15 Class A, ICES-003 Class A, VCCI Class A, RCM, KC

Performance

Built-in processor: Yes
Memory type: DDR3-SDRAM
Internal memory: 512 MB
Flash memory: 256 MB
Noise level: 38 dB
Firmware upgradeable: Yes
Mean time between failures (MTBF): 1017939 h
Minimum system requirements: Web browser (Chrome, Edge, Firefox, Safari) or NETGEAR Insight app/cloud account
