Home/Catalogue/NETGEAR/MS308E-100NAS
Drag to turn · 4 views
NETGEARNetwork Switches

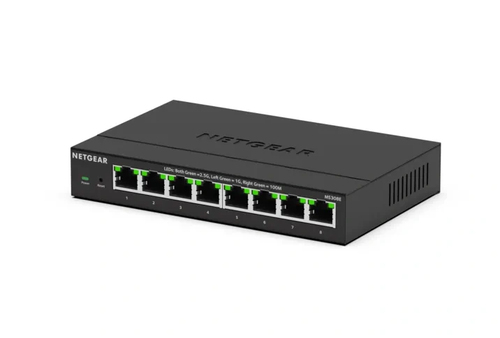

MS308E 2.5G Ethernet (100/1000/2500) 1U Black
- Effortless Setup with Simple Configuration
- Eight (8) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
- Compact, robust metal desktop case with silent fanless operation
- Versatile placement options: desktop or wall mounting
- Convenient monitoring via per port LEDs, displaying activity and speed
- Easy management with intuitive web-based Interface
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
MULTI-GIGABIT ETHERNET
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
01
NON-BLOCKING SWITCHING
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
02
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
03
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
04
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
05
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
Management features
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- 2.5G Ethernet (100/1000/2500)
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3bz
- 10G support
- No
- Full duplex
- Yes
- Half duplex
- Yes
- Auto MDI/MDI-X
- Yes
- Head-of-line (HOL) blocking
- Yes
- Ethernet LAN data rates
- 100,1000,2500 Mbit/s
- Cable length detection
- Yes
Data transmission
- Switching capacity
- 40 Gbit/s
- Forwarding rate
- 3.72 Mpps
- MAC address table
- 16000 entries
- Latency (1 Gbps)
- 4.9 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 12288
Design
- Rack mounting
- No
- Stackable
- No
- Form factor
- 1U
- Product colour
- Black
- Housing material
- Metal
- Wall mountable
- Yes
- Number of fans
- 0 fan(s)
Performance
- Noise level
- 0 dB
- Fanless
- Yes
- Mean time between failures (MTBF)
- 3309911 h
Power
- Power source
- DC
- Power supply included
- Yes
- DC input voltage
- 12 V
- Input current
- 1 A
- Input voltage
- 12 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Other features
- Warranty period
- 5 year(s)
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 8.27 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 27 mm
- Weight
- 430 g
Downloads
