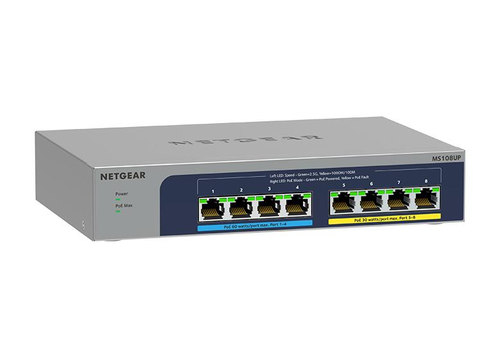

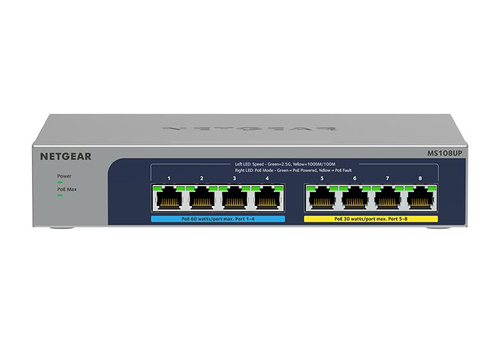

MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
- Multi-Gigabit Ethernet
- Non-Blocking Switching
- PoE Support
- Fanless Design
- PoE Auto-Balance
- Versatile Mounting Options
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity
- 8
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Full duplex
- Yes
- Half duplex
- Yes
- Auto MDI/MDI-X
- Yes
- Head-of-line (HOL) blocking
- Yes
- Ethernet LAN data rates
- 100,1000,2500 Mbit/s
- Auto-sensing
- Yes
- VLAN support
- Yes
- Number of VLANs
- 64
Data transmission
- Switching capacity
- 40 Gbit/s
- MAC address table
- 16000 entries
- Latency (1 Gbps)
- 3.593 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 12000
- Packet forwarding rate (1 Gbps)
- 1488000 pps
- Packet buffer memory
- 1.5 MB
Design
- Rack mounting
- No
- Housing material
- Metal
- Wall mountable
- Yes
- Number of fans
- 0 fan(s)
- Electromagnetic compatibility
- CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Performance
- Fanless
- Yes
- Mean time between failures (MTBF)
- 373643.7 h
Power
- Power source
- DC
- Power supply included
- Yes
- DC input voltage
- 54 V
- Input current
- 4.7 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 230 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 923.49 BTU/h
Weight & dimensions
- Width
- 210 mm
- Depth
- 140 mm
- Height
- 40 mm
- Weight
- 900 g
Certificates
- Certification
- CB, CSA, CCC, BSMI, RCM
