JGS524 ProSafe 24 Port Gigabit Rackmount Switch

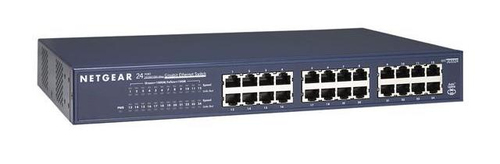

Name: NETGEAR JGS524 ProSafe 24 Port Gigabit Rackmount Switch
Brand: NETGEAR
SKU: JGS524NA

Part # JGS524NAUPC 606449036459Warranty: NETGEAR 2 year warranty5.6 lb

Special orderPrice on request

View quote list

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Take Gigabit to the Desktop

NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, these unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

High Capacity

1000 Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.

Affordable

Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.

Flexible

Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10, 100, and 1000 Mbps devices on your network.

Convenient

Easy to set up and easy to use, these unmanaged switches have per port LED's for effortless network monitoring. Compact enough for desktop but comes with a rack mount kit. Compatible with PC, Macintosh, Linux, and Unix operating systems.

Package Contents

· 24-port Gigabit Ethernet Switch JGS524

· Power adapter

· Installation guide

· Rack-mount kit

· Warranty/Support information card

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24

Data transmission

MAC address table: 8000 entries
Maximum data transfer rate: 1 Gbit/s
Packet buffer memory: 2 MB

Design

LED indicators: Link, Power
Safety: UL listed (UL 1950)/cUL, IEC950/EN60950

Performance

Mean time between failures (MTBF): 87600 h

Power

Power consumption (typical): 40 W

Other features

Latency: 20 µs max
Dimensions (WxDxH): 330 x 207 x 43 mm
I/O ports: 24x RJ-45
Power requirements: 100~240V; 50-60Hz
Electromagnetic emissions: CE mark, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024, C-Tick
