NETGEARNetwork Switches

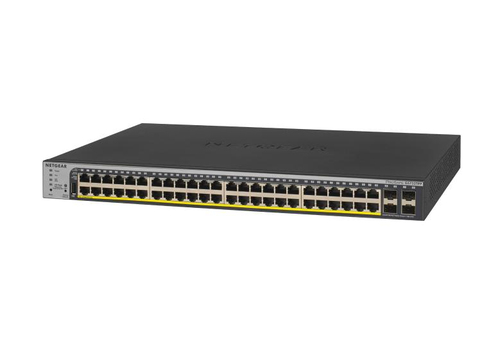

GS752TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Managed L2/L3/L4
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 16000 entries Switching capacity: 104 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
01
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Cloud-managed
- Yes
- ARP inspection
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- USB Type-A ports quantity
- 1
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
- 10G support
- Yes
- IPv4 routes
- 32
- IPv6 routes
- 32
- VLAN support
- Yes
- Number of VLANs
- 256
Data transmission
- Switching capacity
- 104 Gbit/s
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Latency (10-100 Mbps)
- 9.617 µs
- Latency (1 Gbps)
- 4.411 µs
Security
- DHCP features
- DHCP snooping, DHCPv6 client
- Access Control List (ACL)
- Yes
- Access Control List (ACL) IPv4 entries
- 100
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 512
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Black
- Redundant fans support
- Yes
Performance
- Built-in processor
- Yes
- Processor manufacturer
- ARM
- Processor model
- ARM Cortex-A55
- Processor frequency
- 800 MHz
- Internal memory
- 512 MB
- Flash memory
- 64 MB
- Noise level
- 39.3 dB
Power
- Power source
- AC/DC/PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 48
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Heat dissipation
- 2944.6 BTU/h
Weight & dimensions
- Width
- 440 mm
- Depth
- 310 mm
- Height
- 43.2 mm
- Weight
- 5.03 kg
Certificates
- Certification
- CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
