NETGEARNetwork Switches

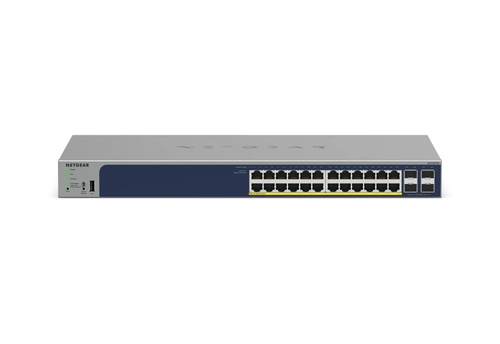

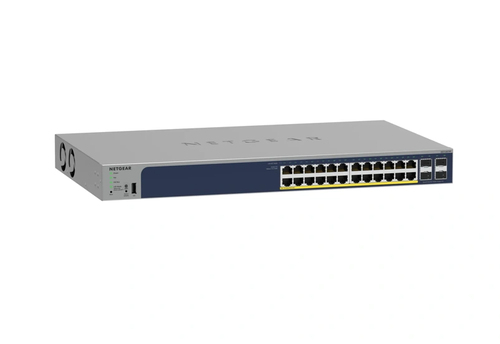

GS728TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN (selected models)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Cloud-managed
- Yes
- ARP inspection
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 24
- Installed SFP modules quantity
- 4
- USB Type-A ports quantity
- 1
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x
- 10G support
- No
- IPv4 routes
- 32
- IPv6 routes
- 32
- VLAN support
- Yes
Data transmission
- Switching capacity
- 56 Gbit/s
- Forwarding rate
- 41.67 Mpps
- MAC address table
- 16000 entries
- Latency (10-100 Mbps)
- 8.871 µs
- Latency (1 Gbps)
- 4.701 µs
- Packet buffer memory
- 1.5 MB
Security
- DHCP features
- DHCP snooping, DHCP client
- Access Control List (ACL)
- Yes
- Access Control List (ACL) IPv4 entries
- 100
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 512
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Grey
- Housing material
- Metal
- Number of fans
- 2 fan(s)
Performance
- Built-in processor
- Yes
- Processor manufacturer
- ARM
- Processor model
- ARM Cortex-A55
- Processor frequency
- 800 MHz
- Internal memory
- 512 MB
- Flash memory
- 64 MB
- Noise level
- 33.3 dB
- Mean time between failures (MTBF)
- 1252990 h
Power
- Power source
- DC/PoE
- Power supply included
- Yes
- Number of power supply units
- 1
- Power consumption (max)
- 427 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 380 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 440 mm
- Depth
- 257 mm
- Height
- 43.2 mm
- Weight
- 4.11 kg
Certificates
- Certification
- CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
