Home/Catalogue/NETGEAR/GS724TP-300NAS
Drag to turn · 6 views
NETGEARNetwork Switches

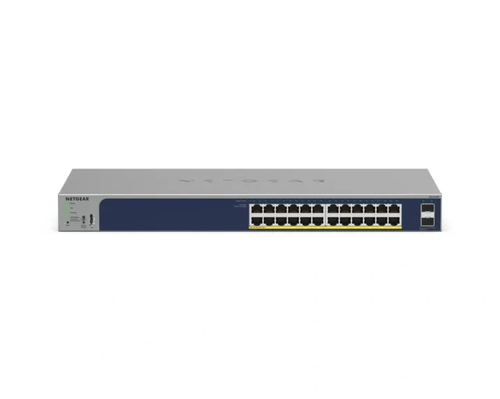

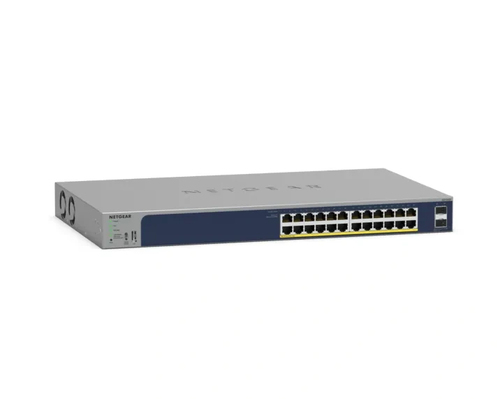

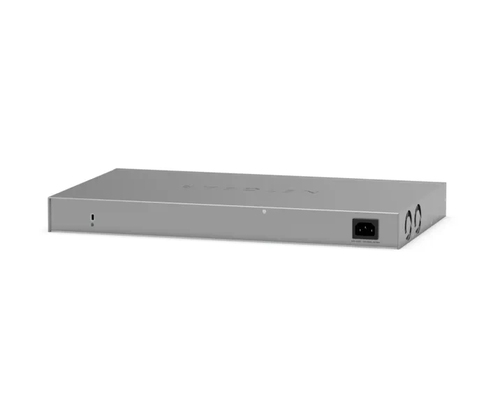

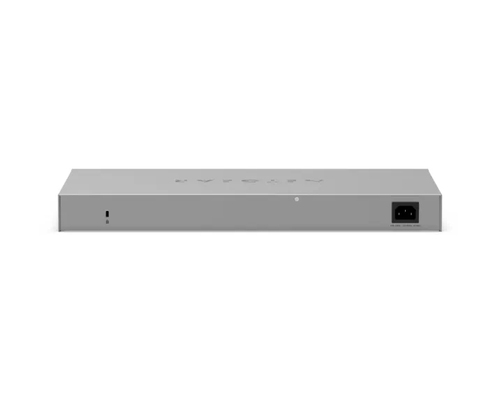

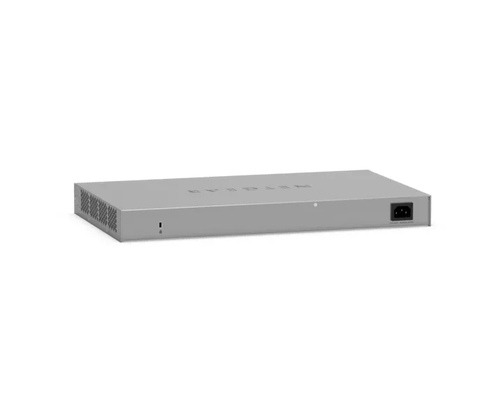

GS724TPv3 Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey, Blue
- Insight mobile app or Insight Cloud Portal
- Web browser-based management GUI
- Smart Lite CLI Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 2
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p
- 10G support
- No
- Copper ethernet cabling technology
- 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Number of VLANs
- 256
Optical fiber
- Fiber ethernet cabling technology
- 1000BASE-X
Data transmission
- Switching capacity
- 52 Gbit/s
- Forwarding rate
- 38.6 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet buffer memory
- 1.5 MB
Security
- DHCP features
- DHCP client, DHCP snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
Multicast features
- Multicast support
- Yes
Protocols
- Management protocols
- SNMP v1/v2/v3
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Grey, Blue
Power
- Power source
- DC/PoE
- Power supply included
- Yes
- Power consumption (max)
- 231.07 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 190 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 3048 m
Weight & dimensions
- Width
- 440 mm
- Depth
- 257 mm
- Height
- 43.2 mm
- Weight
- 3.15 kg
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- User guide
- Yes
- Manual
- Yes
- Rack mount kit
- Yes
Certificates
- Certification
- CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Downloads
