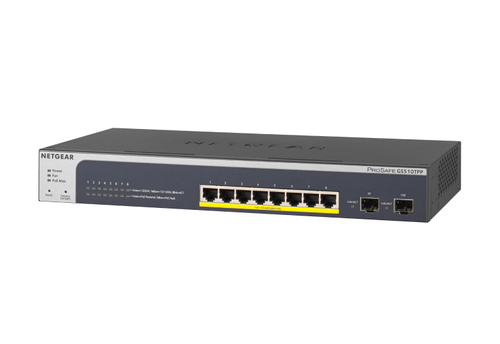

10-Port PoE Gigabit Ethernet Smart Switch (GS510TPP)
- Managed L2/L3/L4
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 20 Gbit/s
- 100 Access Control List (ACL)
- Power over Ethernet (PoE)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Smart Switch Series (GS510TPP)
8-Port Gigabit Ethernet High-Power PoE+ Smart Switch with 2 Dedicated SFP Ports (190W)
NETGEAR Smart Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability.
Smart Managed Switches just got more powerful and flexible
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.
The GS510TLP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Switches family, adding full 8 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 75W. Fan-less, the GS510TLP supports perfectly silent desktop operation or rack mounting.
Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can require GS510TPP 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports: 190W PoE budget offers more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32dB at full power and 25°C (77°F) ambient.

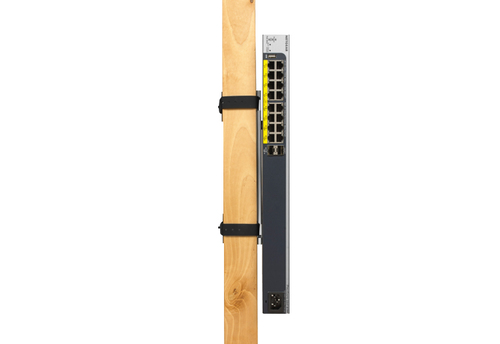

The GS418TPP Easy Mount 16-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports is future-proof with 240W of PoE budget and ideal for “Virtually Anywhere deployments. Slim design (3.94 inches, 10 cm deep) and mounting accessories allow for access point, IP camera or VoIP endpoint placement optimization and cabling efficiency even outside the rack. The GS418TPP supports Easy Mount quiet operation or rack mounting with a maximum of 33dB at full power and 25°C (77°F) ambient
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
- Console port
- RJ-45
- Power connector
- DC-in jack
Network
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- Number of VLANs
- 256
Data transmission
- Switching capacity
- 20 Gbit/s
- MAC address table
- 16000 entries
- Latency (1 Gbps)
- 3.313 µs
- Packet buffer memory
- 1.5 MB
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) rules
- 100
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 512
Design
- Product colour
- Black
Performance
- Built-in processor
- Yes
- Processor frequency
- 400 MHz
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 190 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Weight & dimensions
- Width
- 328 mm
- Depth
- 169 mm
- Height
- 43 mm
- Weight
- 1.83 kg
Packaging content
- Quick start guide
- Yes
- User guide
- Yes
- Manual
- Yes
- Rack mount kit
- Yes
Certificates
- Certification
- CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
