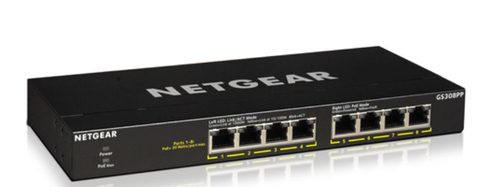

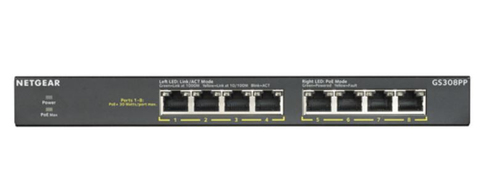

GS308PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- ETHERNET PORT CONFIGURATION: 8 Gigabit ports
- POWER-OVER-ETHERNET: 8 PoE+ ports with 83W total power budget, and includes NETGEAR FlexPoE making it expandable to 123W (w/separately purchased power supply module)
- PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
- PoE POWER AUTO-BALANCE AND ALLOCATION – NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
- VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
- SILENT OPERATION: The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 8

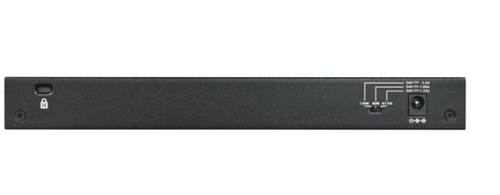

- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-sensing
- Yes
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 16 Gbit/s
- MAC address table
- 4000 entries
- Latency (1 Gbps)
- 3 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet forwarding rate (1 Gbps)
- 1448000 pps
- Packet buffer memory
- 0.192 MB
Design
- Rack mounting
- Yes
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Activity, Link, PoE, Power, Speed
- Wall mountable
- Yes
Performance
- Mean time between failures (MTBF)
- 2752476 h
Power
- Power source
- DC/PoE
- Input current
- 1.66 A
- Power consumption (max)
- 87.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 130 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Storage relative humidity (H-H)
- 0 - 90%
- Operating altitude
- 0 - 3000 m
Weight & dimensions
- Width
- 236 mm
- Depth
- 102 mm
- Height
- 27 mm
- Weight
- 600 g
Certificates
- Certification
- CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC
