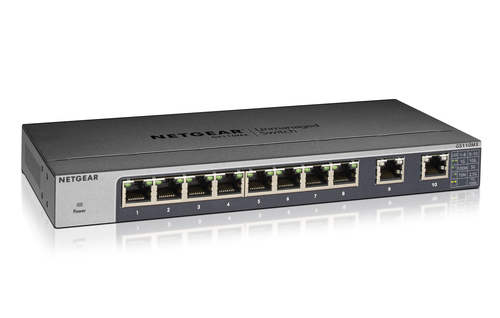

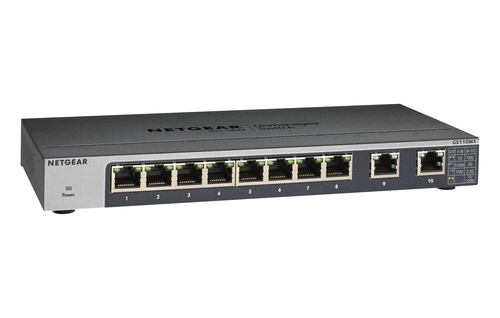

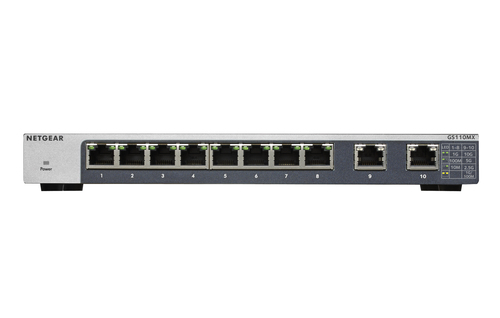

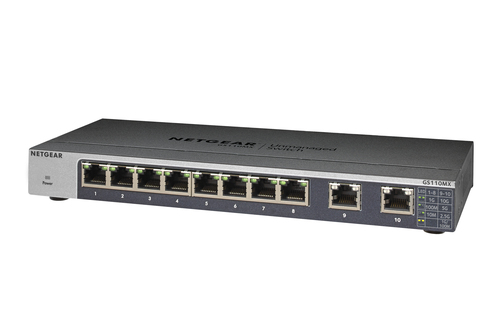

GS110MX Unmanaged Gigabit Ethernet (10/100/1000) Black

Part # GS110MX-100NASUPC 6064491288642.9 lb

Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 10
Cat5, Cat5e, Cat6, Cat6a, Cat7 10G support
MAC address table: 16000 entries Switching capacity: 56 Gbit/s
Rack mounting

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The GS110EMX and GS110MX come with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.

The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.

The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment.

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

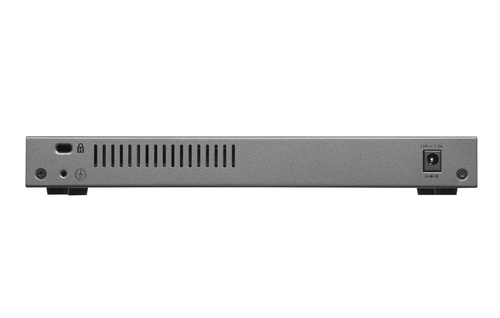

Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support: Yes
Cable types supported: Cat5, Cat5e, Cat6, Cat6a, Cat7
Full duplex: Yes
Flow control support: Yes
VLAN support: No

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.664 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 7 µs
Latency (1 Gbps): 4 µs
Latency (10 Gbps): 3 µs
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 10240
Packet buffer memory: 0.128 MB

Security

Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Rack mounting: Yes
Product colour: Black
Housing material: Metal
LED indicators: Link, Power, Speed
Wall mountable: Yes
Number of fans: 0 fan(s)
Safety: UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015
Electromagnetic compatibility: Class B

Performance

Noise level: 0 dB

Power

Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 4.8 W
Power consumption (max): 13.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m
Heat dissipation: 45.14 BTU/h

Weight & dimensions

Width: 236 mm
Depth: 102 mm
Height: 27 mm
Weight: 740 g

Packaging content

Quick start guide: Yes
Rack mount kit: Yes

Packaging data

Wall mounting kit: Yes
AC adapter included: Yes
Rubber feet: Yes

Certificates

Certification: 47 CFR FCC Part 15, SubpartB, Class B ICES-003:2016 Issue 6, Class B ANSI C63.4:2014 N 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 +A1:2015
