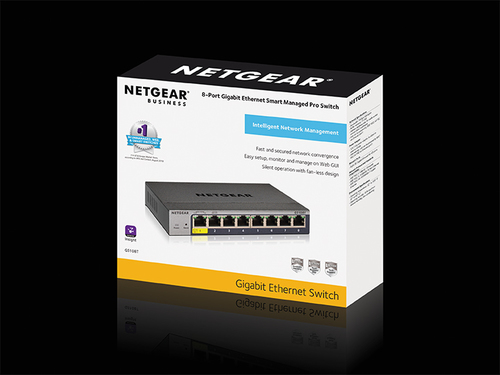

GS108T-300 Managed L2 Gigabit Ethernet (10/100/1000) Grey
- 8-port switches
- Managed switches
- Smart managed pro switches
- Gigabit Ethernet switches
- Cloud managed switches
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-TX
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- MAC address auto-learning supported
- Yes
- Number of VLANs
- 64
Data transmission
- Switching capacity
- 16 Gbit/s
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Packet buffer memory
- 0.5 MB
Security
- DHCP features
- DHCP client
- Access Control List (ACL)
- Yes
- Access Control List (ACL) IPv6 entries
- 100
- IGMP snooping
- Yes
- Security algorithms
- 802.1x RADIUS
- MAC address filtering
- Yes
Multicast features
- Multicast support
- Yes
- IPv4 multicast entries
- 32
- Number of multicast groups filtered
- 256
Protocols
- Management protocols
- SNMP
- Switching protocols
- SNMP
- Data link protocols
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Supported network protocols
- HTTP, HTTPS
Design
- Stackable
- No
- Product colour
- Grey
- LED indicators
- Activity, LAN, Link, PoE, Power, Speed
Performance
- Processor frequency
- 500 MHz
- Memory type
- RAM
- Internal memory
- 128 MB
- Flash memory
- 32 MB
- Firmware upgradeable
- Yes
- Mean time between failures (MTBF)
- 2388657 h
Power
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- DC input voltage
- 54 V
- Input current
- 1.25 A
- Power consumption (max)
- 5.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 3000 m
- Heat dissipation
- 18.66 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 27 mm
- Weight
- 43 kg
Packaging content
- Manual
- Yes
Packaging data
- Package type
- Box
- Package width
- 226 mm
- Package depth
- 270 mm
- Package height
- 64 mm
- Package weight
- 750 g
Certificates
- Certification
- CE, FCC, VCCI Class B, C-Tick
Logistics data
- Master (outer) case width
- 214 mm
- Master (outer) case length
- 474 mm
- Master (outer) case height
- 312 mm
- Master (outer) case gross weight
- 5.28 kg
- Products per master (outer) case
- 6 pc(s)
