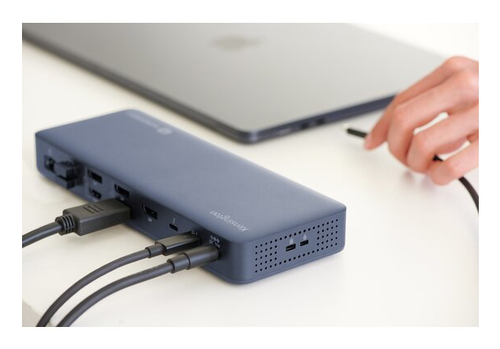

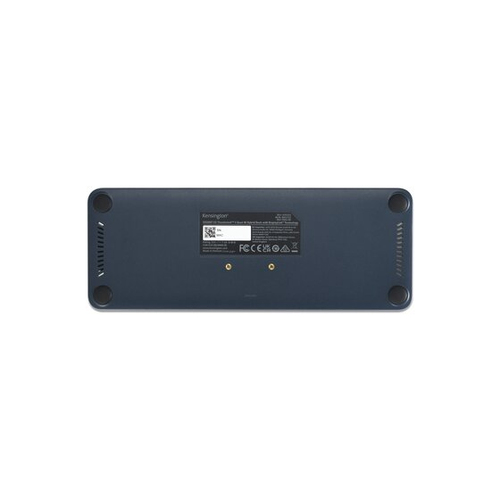

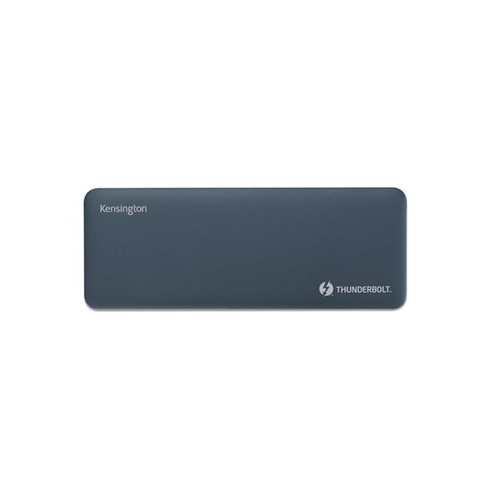

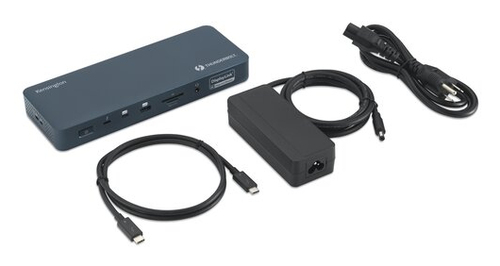

SD5900T EQ Thunderbolt 4 Quad 4K 40Gbps Dock with DisplayLink Technology – Midnight Blue

Part # K35232NAUPC 085896352327Warranty: 3-year limited3 lb

Supports MacBook models with M1/M2/M3/M4 Pro or Max chipsets, and M4/M5 Base chipsets, providing up to Quad 4K video output via HDMI®, DisplayPort, and Thunderbolt™
Optimized for MacBook models with M1, M2, M3, and M4 chipsets running macOS (11 or later)
Combines Thunderbolt™ with DisplayLink® to provide next-level productivity experiences, including up to 40Gbps of data, video, and audio, daisy chain support, and Intel VT-d DMA protection
Up to 100W charging (96W certified) to power your MacBook and connected accessories
Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups
Sustainability attributes include 100% post-consumer recycled (PCR) aluminum.* *The outer casing of the docking station is made of aluminum. The PCBA and any related inner components are not made of aluminum

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

A typical Thunderbolt™ 4 dock only supports a single display for MacBook M1/M2/M3 Base chipset models. For busy professionals juggling multiple tasks and projects, this means minimizing and toggling between windows to meet workflow demands, hampering productivity and focus. The SD5900T EQ Thunderbolt™ 4 Quad 4K 40Gbps Dock leverages the power of Thunderbolt™ 4 and DisplayLink® technology to expand your visual workspace, experience 40Gbps bandwidth, and boost productivity – unlocking the full potential of your MacBook to support unrivaled connectivity and seamless multi-tasking.

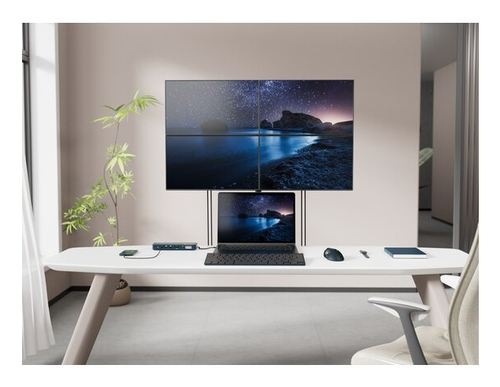

Up to Quad 4K Video via HDMI®, DP, and Thunderbolt™ for MacBook

Provides flexible video connections without the need for cumbersome adapters. Choose between 2 x Thunderbolt™ 4 downstream ports and 1 x DP port for plug-and-play video. Add 2 x HDMI®/DP options with DisplayLink® technology. Supports up to Quad 4K @ 60Hz for MacBook models with the M4/M5 Base chipset, and MacBook models with M1/M2/M3/M4 Pro and Max chipsets (and the M3 base chipset when the laptop lid is closed). Also supports up to Triple 4K @ 60Hz for models with base M1/M2 chipsets.

Designed for MacBook

Delivers the power of Thunderbolt™ 4, reflects the midnight blue aesthetic of the latest MacBook, and is optimized for devices with M1, M2, M3, and M4 chipsets running macOS (11 or later).

Thunderbolt™ 4 Hybrid Technology

Combines Thunderbolt™ with DisplayLink® technology to provide next-level productivity experiences. Transfers up to 40Gbps of data, video, and audio. Provides daisy chain support for SSDs, monitors, and other Thunderbolt™ devices. Blocks peripheral devices from unauthorized access to system memory using Intel VT-d DMA protection.

Up to 100W Charging (96W certified)

Power your MacBook while also charging your connected accessories, including iPhones, AirPods, and Apple watches. Includes KonstantCharge™, enabling connected devices to charge even when your MacBook is undocked.

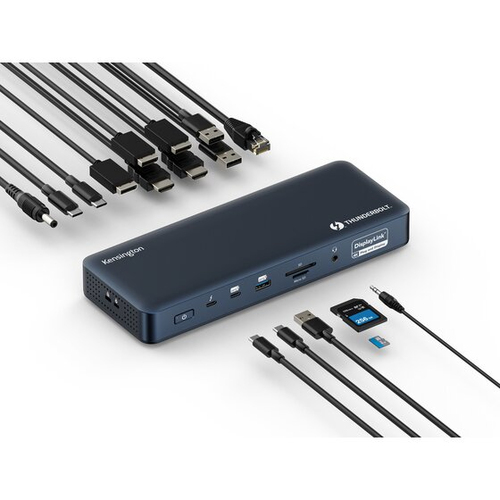

Productive 16-in-1 Design

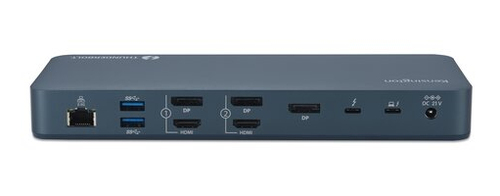

With 16 connection options, provides all the ports you need to get the job done today and well into the future. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video, and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader, and 1 x 2.5Gbps Ethernet.

Recycled Materials

The SD5900T is composed of 100% post-consumer recycled (PCR) aluminum* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. *The outer casing of the docking station is made of aluminum. The PCBA and any related inner components are not made of aluminum.

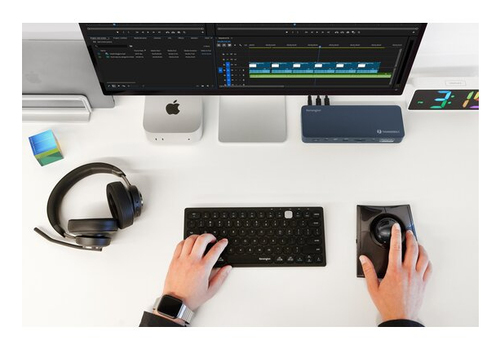

Zero-Footprint Mounting Option and Security Cable Lock Slots

Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.

3-Year Limited Warranty

Enjoy peace of mind knowing you are covered by Kensington with a professional warranty.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
DisplayPorts quantity: 3
Thunderbolt 4 ports quantity: 2
Combo headphone/mic port: Yes
Headphone connectivity: 3.5 mm
DC-in jack: Yes
HDCP: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Performance

Colour name: Midnight Blue
Card reader integrated: Yes
Compatible memory cards: SD, MicroSD (TransFlash)
Data transfer rate: 40 Gbit/s
HD type: 8K Ultra HD
Number of displays supported: 3
Maximum refresh rate: 540 Hz
Cable lock slot: Yes
Cable lock slot type: Kensington, Nano
Product colour: Blue
On/off switch: Yes
LED indicators: Yes
Plug and Play: Yes
Charging function: Yes
Housing material: Aluminium, Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Country of origin: Vietnam
