F,SD5600T Thunderbolt 3 Dock U

Part # K34009NAUPC 085896340096Warranty: 3 years4.2 lb

Best for: Thunderbolt 3 and USB-C laptops and monitors that support up to dual 4K
Connection technology: Thunderbolt 3 and USB-C (cross platform compatibility)
Power Delivery: Supports USB-C PD 3.0 up to 100W (96W certified)
Compatibility: Windows 10 or above, macOS 10.14 or above
No. of monitors supported: 2
Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The SD5600T Thunderbolt™ 3 and USB-C™ Dual 4K Hybrid Docking Station - 96W PD – Win/Mac is the ultimate docking station for maximum productivity and compatibility. Features include universal compatibility, the flexibility to select between HDMI 2.0 and DP 1.2, horizontal or vertical placement options, built-in SD and Micro SD card readers, seven USB ports (two with charging), one Gigabit Ethernet port and one audio combo jack. Three-year warranty.

Universal compatibility

Perfect for hot-desking and mixed deployment environments, the SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS.

Thunderbolt 3 technology

Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included Thunderbolt 3 cable, for a quick and powerful plug and play experience.

Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices

Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 30Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST).

Supports USB-C PD 3.0 up to 100W (96W certified)

Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro. Power delivery rates vary based on host device.

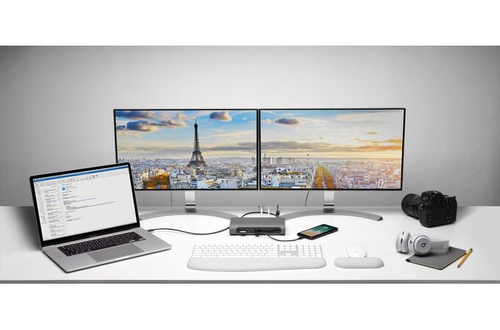

Productive desktop setup

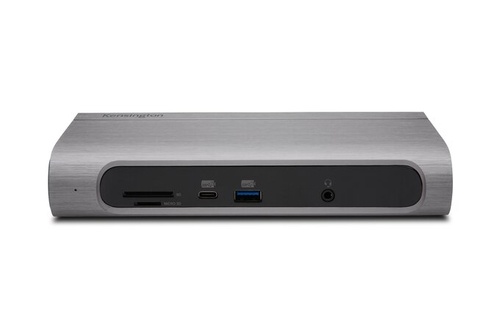

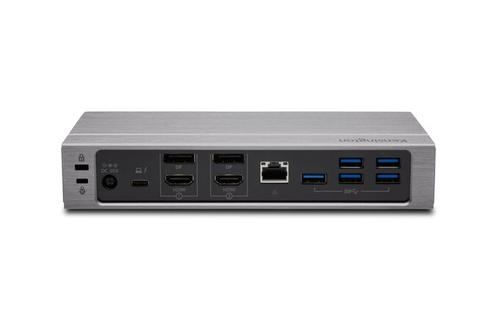

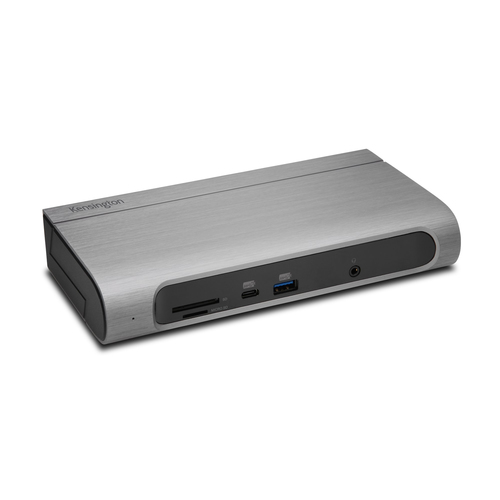

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.

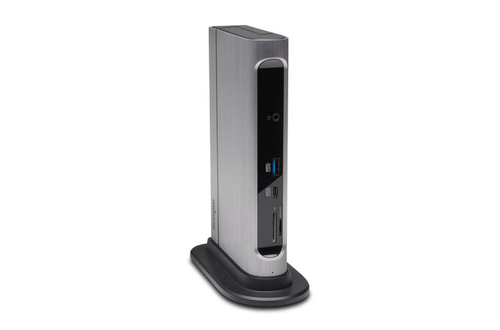

Flexible mounting options

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).

Built-in SD and Micro SD card readers

UHS II SD 4.0 card readers enable ultra-fast file transfer.

Free Kensington DockWorks™ software and three-year warranty

For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you’re covered by Kensington.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
Audio output: 3.5 mm
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.2
Combo headphone/mic port: Yes
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 40 Gbit/s
HD type: 4K Ultra HD
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Product colour: Black, Silver
Plug and Play: Yes
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Metal, Polycarbonate (PC)
Country of origin: Thailand
Brand compatibility: Universal
Certification: FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL
