EatonUPS Batteries

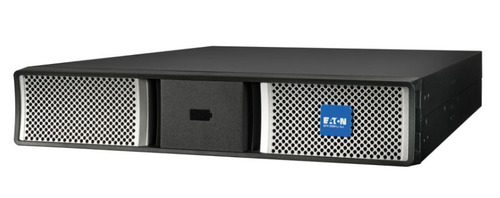

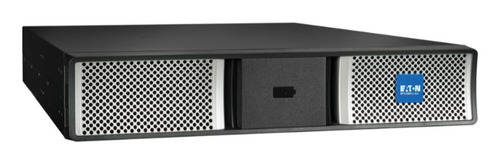

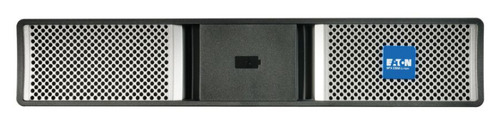

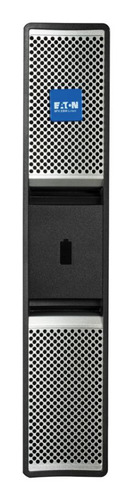

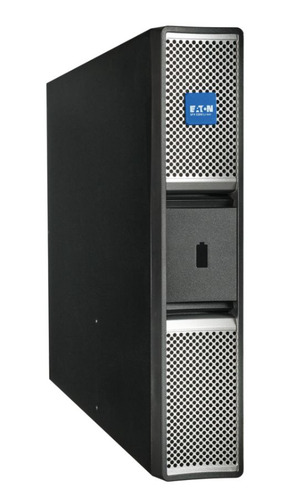

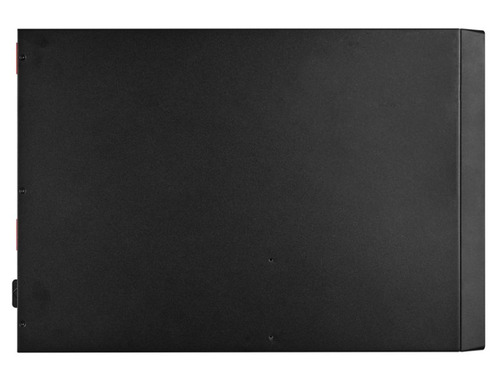

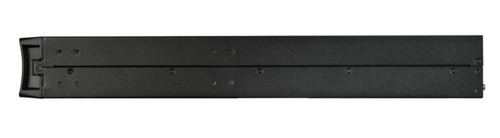

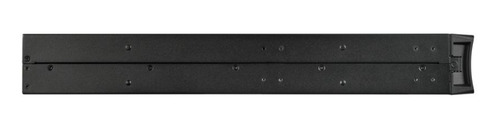

9PXEBM192RTG2-L UPS battery Lithium-Ion (Li-Ion) 192 V 12 Ah
- Lithium-ion batteries have lifespan up to 10 years

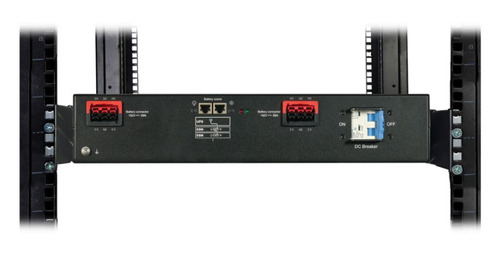

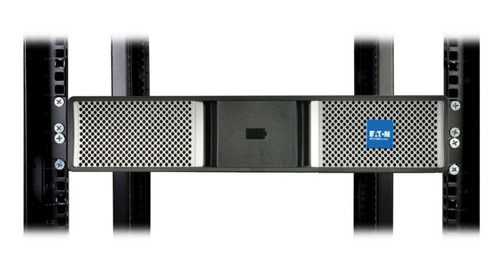

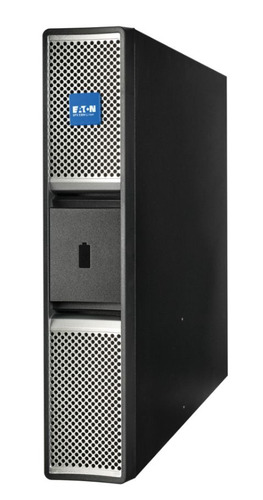

- Supports 2U rack mounting or upright tower installation
- Connects to 9PX G2 6-11kVA lithium-ion UPS systems for extended runtime
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

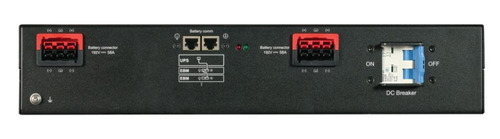

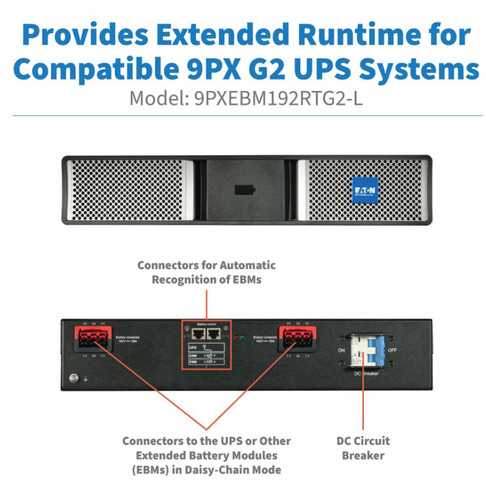

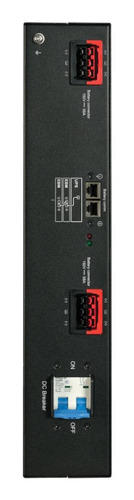

FDONLY ITEM DUE TO LITHIUM Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime. The lithium-ion 9PXEBM192RTG2-L offers extended battery runtime when used in conjunction with Eaton’s 9PX6KG2-L, 9PX8KG2-L or 9PX11KG2-L UPS system. It can also be daisy-chained for a maximum of 10 matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Supports 2U Rack or Tower Installation. This lithium-ion backup battery pack is smaller and lighter than VRLA modules. Its mu
Specifications
Features
- Battery voltage
- 192 V
- Battery capacity
- 12 Ah
- Battery capacity
- 2304 Wh
- Number of batteries included
- 1 pc(s)
- Product colour
- Black
Certificates
- Certification
- CE RoHS EN 62040-2 cULus Listed
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
Weight & dimensions
- Weight
- 37.4 kg
- Width
- 437.9 mm
- Height
- 85.3 mm
- Depth
- 633 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
