EatonUninterruptible Power Supplies (UPSs)

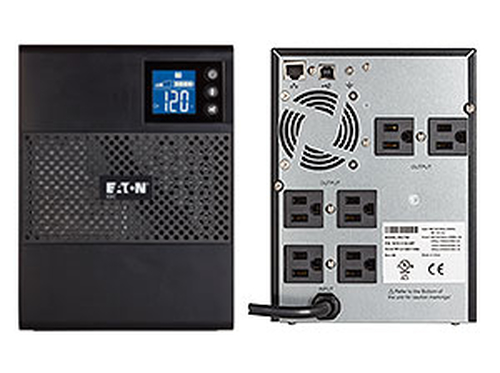

5SC UPS 750VA 525 Watt
- 0.75 kVA 525 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Specifications
Features
- Output power capacity
- 0.75 kVA
- Output power
- 525 W
- Waveform
- Sine
- Input operation voltage (min)
- 96 V
- Input operation voltage (max)
- 144 V
- Input frequency
- 50/60 Hz
- Efficiency
- 94%
- Noise level
- 55 dB
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- USB 2.0 ports quantity
- 1
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 13 min
- Cold start
- Yes
Design
- Form factor
- Tower
- Cable length
- 1.8 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
Certificates
- Compliance certificates
- RoHS
- Certification
- IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Safety regulation & standards
- Safety
- CE/cULus/NOM
Weight & dimensions
- Width
- 150 mm
- Depth
- 340 mm
- Height
- 209 mm
- Weight
- 10.5 kg
Logistics data
- Harmonized System (HS) code
- 85078000
Other features
- Nominal output voltage
- 120 V
- Nominal input voltage
- 120 V
