EatonUninterruptible Power Supplies (UPSs)

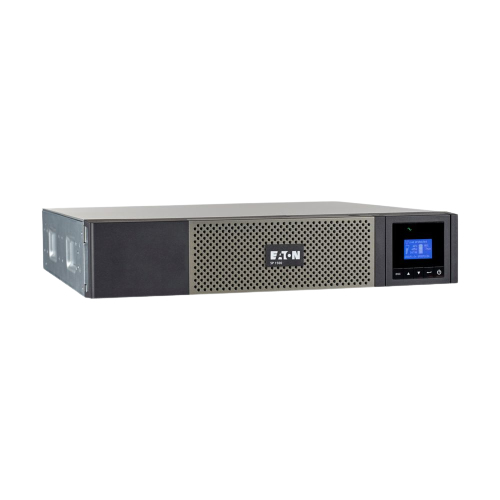

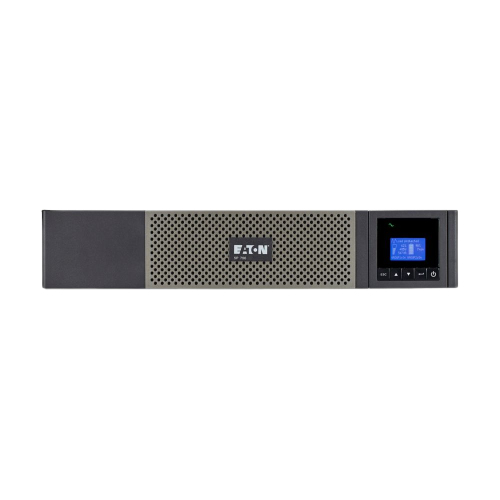

5P Rackmount Compact 2U
- Double-conversion (Online)
- 0.75 kVA 600 W
- Waveform: Sine
- 10 AC outlet(s)
- Rackmount Black
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 0.75 kVA
- Output power
- 600 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 120 V
- Input frequency
- 47/70 Hz
- Output operation voltage (min)
- 102 V
- Output operation voltage (max)
- 132 V
- Output frequency
- 50/60 Hz
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- USB port
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Design
- Form factor
- Rackmount
- Cooling type
- Active
- Built-in fan
- Yes
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 85%
Weight & dimensions
- Width
- 441 mm
- Depth
- 406 mm
- Height
- 86 mm
- Weight
- 14.1 kg
Downloads
