EatonUninterruptible Power Supplies (UPSs)

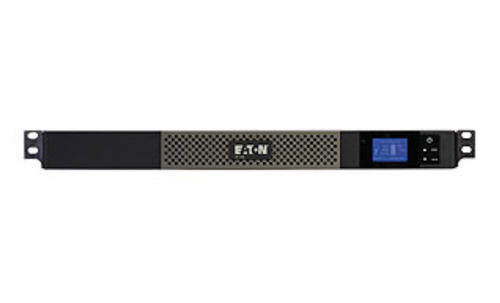

5P Rackmount uninterruptible power supply (UPS) 1 kVA 770 W 5 AC outlet(s)
- 1 kVA 770 W
- 5 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black, Silver
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
Specifications
Features
- Output power capacity
- 1 kVA
- Output power
- 770 W
- Input operation voltage (min)
- 89 V
- Input operation voltage (max)
- 151 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 125 V
- Efficiency
- 97%
- Emergency Power Off (EPO)
- Yes
- Noise level
- 45 dB
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 5 AC outlet(s)
- USB 2.0 ports quantity
- 1
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 12 min
- Hot-swap battery
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 1U
- Cable length
- 1.8 m
- Product colour
- Black, Silver
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- UL 1778, UL497A cULus, C IEC 62040-2 C1-C2 / EN 55024 / CISPR22 B / FCC
Weight & dimensions
- Width
- 438 mm
- Depth
- 509 mm
- Height
- 43.2 mm
- Weight
- 14.7 kg
