EatonUninterruptible Power Supplies (UPSs)

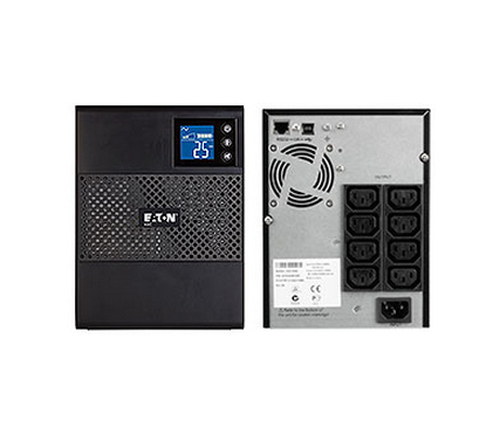

5SC UPS 1500VA 1050 Watt 230V LineInteractive Battery Backup Tower USB
- 1.5 kVA 1050 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Specifications
Features
- Output power capacity
- 1.5 kVA
- Output power
- 1050 W
- Waveform
- Sine
- Input operation voltage (min)
- 184 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Efficiency
- 94%
- Noise level
- 55 dB
Ports & interfaces
- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Serial ports quantity
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 12 min
- Hot-swap battery
- No
- Cold start
- Yes
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
Certificates
- Certification
- IEC 62040-2:2006 Cat C1 / CISPR22 Class B / FCC part 15 Class B
Safety regulation & standards
- Safety
- CE/cTUVus/C-Tick/Ghost/CCC
Weight & dimensions
- Width
- 150 mm
- Depth
- 410 mm
- Height
- 209 mm
- Weight
- 15.2 kg
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
