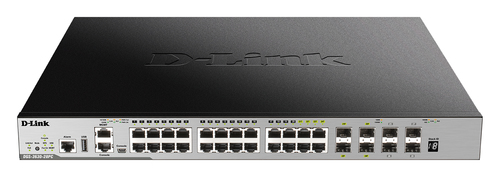

D-Link DGS-3630-28PC/SI Drag to turn · 3 views
D-LinkNetwork Switches

24 Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+

Part # DGS-3630-28PC/SIUPC 79006943501017.8 lb

  • Designed for Small to Medium Businesses, Enterprises and ISPs
  • Deliver high performance, flexibility, fault tolerance, and advanced software features
  • Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
  • High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
  • DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Outperforming the competition

The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

01

Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility

02

- Industry-standard CLI

03

- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

04

High Availability and Flexibility

Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

05

Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
20
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
SFP+ module slots quantity
4
Fiber optic connector
SFP+
Console port
RJ-45/Mini-USB
USB 2.0 ports quantity
1

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
IP routing
Yes
Routing entries
16000
Flow control support
Yes
Link aggregation
Yes
Head-of-line (HOL) blocking
Yes
Auto-negotiation
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs
4000

Data transmission

Switching capacity
128 Gbit/s
Forwarding rate
95.24 Mpps
MAC address table
68000 entries
Store-and-forward
Yes
Static route
Yes
Number of static routes
512
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
4 MB

Security

DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes

Multicast features

Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2

Design

Rack mounting
Yes
Stackable
Yes
Product colour
Black, Grey
Number of fans
4 fan(s)
Safety
cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility
CE, FCC A, C-Tick, VCCI, BSMI, CCC

Performance

Physical stacking (units)
9
Virtual stacking (units)
32
Built-in processor
Yes

Power

Redundant power supply (RPS) support
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
441 mm
Depth
380 mm
Height
44 mm
Weight
5.88 kg

Packaging data

Package width
538 mm
Package depth
560 mm
Package height
170 mm
Package weight
8.24 kg

Technical details

Shipping (inner) case height
57.2 cm
Shipping (inner) case width
36.2 cm
Shipping (inner) case length
57.9 cm
Shipping (inner) case net weight
12.9 kg
Products per shipping (inner) case
2 pc(s)
Pallet gross weight (air)
342.4 kg
Master (outer) cases per pallet (air)
18 pc(s)
Products per pallet (air)
36 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
185.1 cm
Pallet gross weight (sea)
342.4 kg
Master (outer) cases per pallet (sea)
18 pc(s)
Products per pallet (sea)
36 pc(s)
Pallet height (sea)
185.1 cm
Shipping (inner) case gross weight
18 kg

Logistics data

Harmonized System (HS) code
85176990
