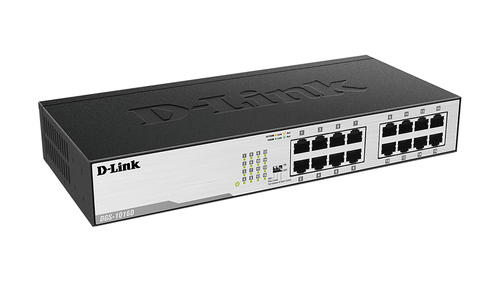

The D-Link High Performance Unmanaged Layer 2 Switch.

Part # DGS-1016DUPC 7900692683283.5 lb

Unmanaged
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 16
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-T, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 32 Gbit/s
1U Rack mounting Stackable

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The D-Link DGS-1016D 16-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

Gigabit Connectivity

The DGS-1016D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Improved Network Efficiency

The DGS-1016D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.

Innovative Design

The DGS-1016D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.

Green Technology

The 16-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.

Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

Specifications

Management features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

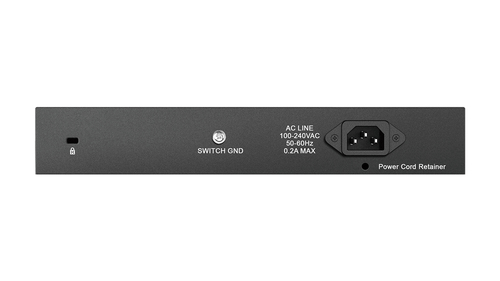

Power connector: AC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Full duplex: Yes
Flow control support: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Active link detection: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.81 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 10000
Packet forwarding rate (1 Gbps): 14880 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 1488000 pps
Packet buffer memory: 0.5 MB

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black, Silver
Housing material: Metal
LED indicators: Activity, Link, Power, Speed
Electromagnetic compatibility: ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
