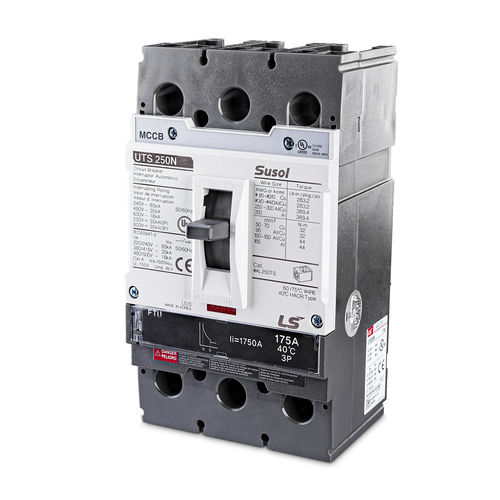

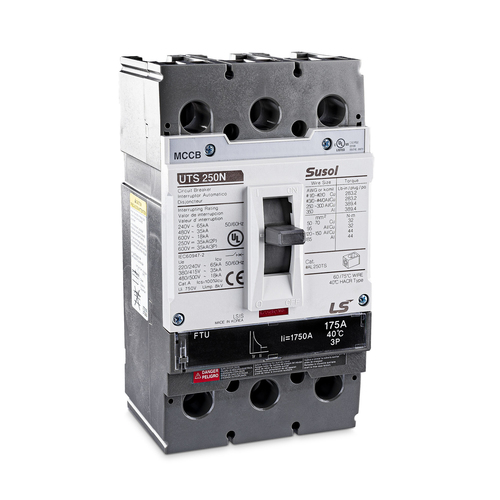

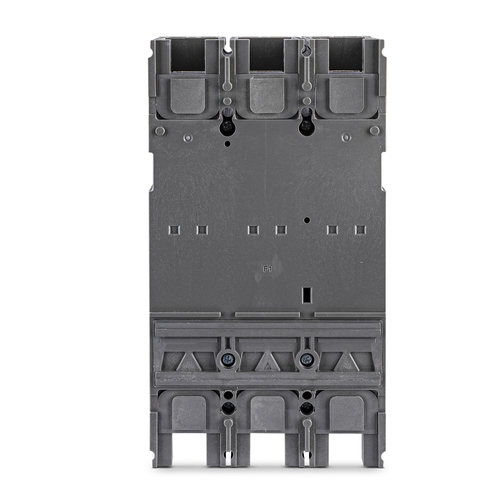

Circuit Breaker 175A 3 Pole for 3Phase UPS
- Amperage: 175 A
- Breaker Type: Input/Output
- Number of Poles: 3
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CyberPower SMUCB175UAC 3-Phase Modular UPS Circuit Breaker Hardware provides convenience and safety with optional 40KVA UPS Input/Output. If the input side overcurrent protection device is in a different area of your facility, having the input circuit breaker at the UPS adds an extra disconnect point for easy bypass during repairs or maintenance. The output circuit breaker also provides protection if your load is connected directly to the UPS without an appropriate overcurrent protection device. Includes a One-Year Limited Warranty.
For Cyberpower Smart App Online 3-Phase Modular UPS system SM040KAMFA.
Localized Protection
Provides the ability for input and output power breakers at the UPS when a utility breaker is not present, or addition protection is desired.
Added Equipment Safety
Input and output breakers deliver additional overcurrent protection for UPS and connected equipment.
Specifications
Power
- Input current
- 175 A
Features
- Circuit breaker type
- Miniature circuit breaker
- Number of poles
- 3
- Product colour
- Grey, White
- Material
- Metal
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 1000 - 3048 m
Weight & dimensions
- Width
- 76 mm
- Depth
- 86 mm
- Height
- 191 mm
- Weight
- 2 kg
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 114.3 mm
- Package depth
- 200.2 mm
- Package height
- 127 mm
- Package weight
- 2 kg
