CyberPowerUPS Battery Cabinets
Battery Cabinet Modular 6 Layer for 1040KVA UPS 3Phase
- Hot-swappable: Yes
- Form Factor: Rack/Tower/Stack
- Smart Battery Management: Yes
- Battery Type: VRLA
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

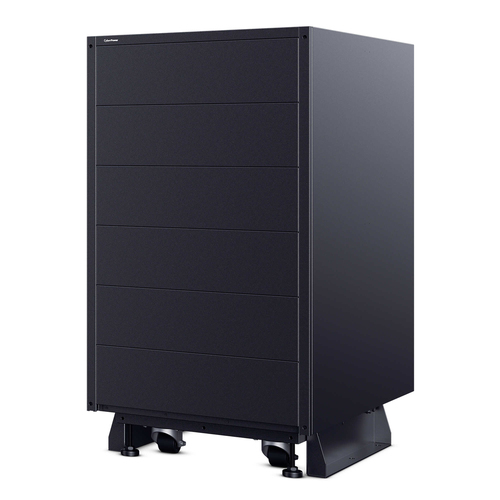

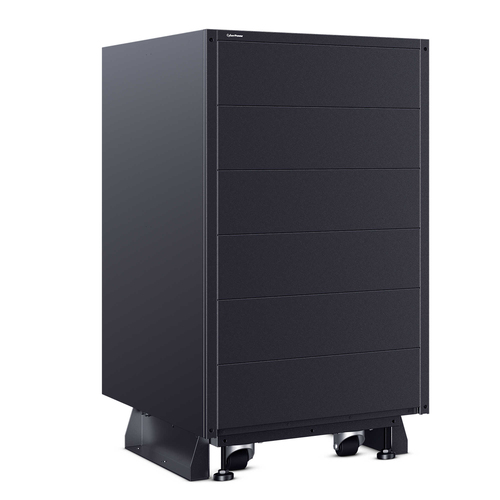

The CyberPower BCT6L9N225 3-Phase Modular UPS Battery Cabinet can hold up to 12 battery modules (BM120V30ATY). These 6-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.
01
Smart Battery Mangement
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
02
Expandable Runtime
Additional battery modules in BCT3L9N125 cabinets will increase runtimes.
03
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
04
Customizable Configuration
The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack.
Specifications
Design
- Form factor
- Rackmount/Tower
- Product colour
- Black
- Housing material
- Metal
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 12
- Battery voltage
- 240 V
- Hot-swap battery
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 1000 - 3048 m
- Non-operating altitude
- 0 - 3048 m
Weight & dimensions
- Width
- 485 mm
- Depth
- 775 mm
- Height
- 942 mm
- Weight
- 93.9 kg
Packaging content
- Quantity
- 1
- Rack mount kit
- Yes
Packaging data
- Package width
- 632 mm
- Package depth
- 1016 mm
- Package height
- 1120.9 mm
- Package weight
- 141.5 kg
