2U HW Input/Output 6XNEMA 5-20R Outlets 3 Year WTY

Part # OL6KSTFUPC 649532620180Warranty: 3 Years Limited128.2 lb

6000 VA/6000 W
Converts 208V from Utility Power, UPS, or Generator to 120V Output
120 V 50/60 Hz Output
Over Temperature Protection
Rack/Tower Form Factor

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

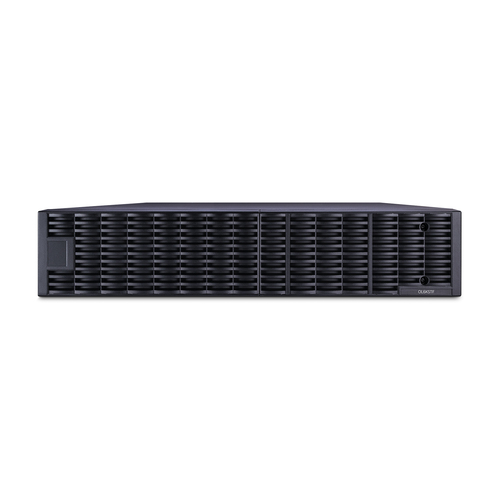

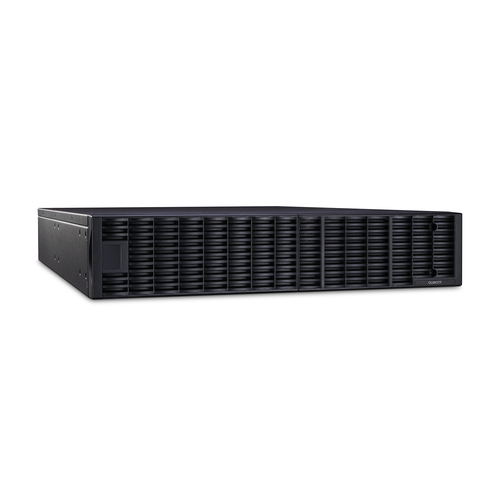

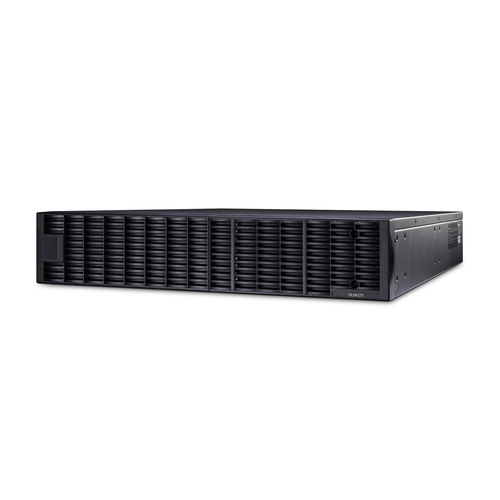

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 208 V input voltage originating from utility power, a UPS, or a generator to 120 V output. The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters. The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.

A Three Year Warranty ensures that this device has passed our highest quality standards in design, assembly, material and workmanship.

Step-Down Transformer

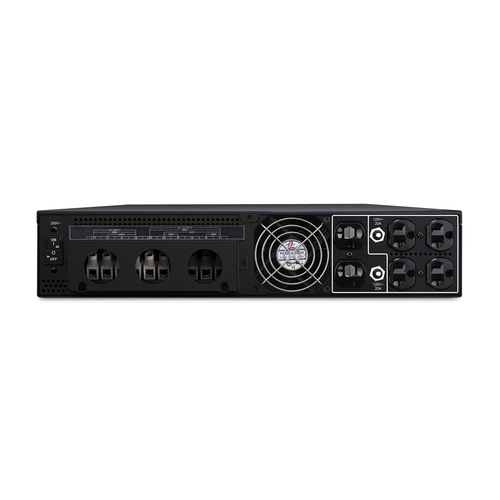

The step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs.

NEMA L6-30P Plug

A 6 foot, 3 wire, power cord with a NEMA L6-30P plug to ROJ (removed outer jacket) is included.

Rack/Tower Versatility

Allows for horizontal rack or vertical tower installation.

Frequency Supported

The OL6KSTF has the flexibility to support both 50 Hz and 60 Hz output.

Over Temperature Protection

Protects the OL6KSTF from damage if the internal heat exceeds safe operating parameters.

Resettable Input and Output Circuit Breakers

Convenient, resettable switches that provide protection from an input or output overload and faults.

Three Year Warranty

CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.

Specifications

Features

AC outlets quantity: 7 AC outlet(s)
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
AC output voltage: 120, 208 V
Input current (max): 30 A
Overheat protection: Yes
Load capacity: 6000 VA
Housing colour: Black
Rack mounting: Yes
Rack capacity: 2U
Brand compatibility: CyberPower
Compatible products: OL3000RTXL2UHV OL6KRT OL6000RT3UPDU OL6KRT3UHW OL8000RT3U OL8000RT3UPDU OL8KRT3UHW OL10000RT3U OL10000RT3UPDU OL10KRTHW PR5000LCDRTXL5U
Certification: UL 1778 5th Ed., CSA C22.2 NO.107.3-05
