CyberPowerSurge Protectors
1800 J, 120 V, NEMA L520P twist lock plug, 12 NEMA 520R 4 front, 8 rear, 15 ft cord, Limited lifetime warranty
- 1800 J 12 AC outlet(s) NEMA 5–20R 120 V
- Cable length: 4.57 m
- EMI/RFI noise filtering 50 dB
- Black Rack mounting
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

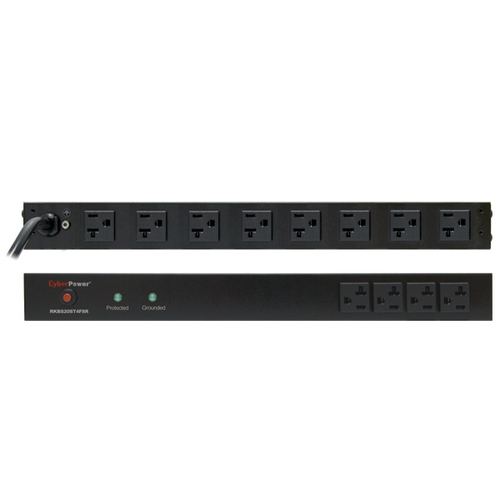

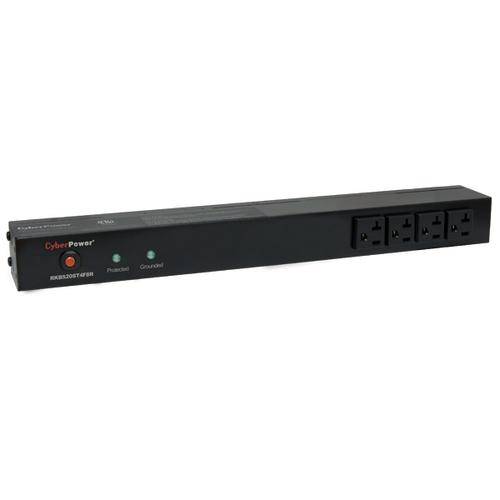

The CyberPower 12-outlet (4 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS20ST4F8R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Specifications
Power
- Surge energy rating
- 1800 J
- AC outlets quantity
- 12 AC outlet(s)
- AC outlet types
- NEMA 5–20R
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
Features
- Product colour
- Black
- Remote control included
- No
- Rack mounting
- Yes
- EMI/RFI noise filtering
- Yes
- EMI/RFI noise filtering
- 50 dB
- On/off switch
- Yes
Technical details
- Compliance certificates
- RoHS
Weight & dimensions
- Cable length
- 4.57 m
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Certification
- UL1363 UL1449, CSA C22.2
Indication
- LED indicators
- Yes
Other features
- Depth (imperial)
- 5.71 cm (2.25")
- Height (imperial)
- 44.5 cm (17.5")
- Width (imperial)
- 4.45 cm (1.75")
