125V/1800J 515R, 6ft cord
- Surge Protection
- EMI/RFI Noise Filter
- LED Indicators
- Industrial-Grade Metal Housing
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Product Overview

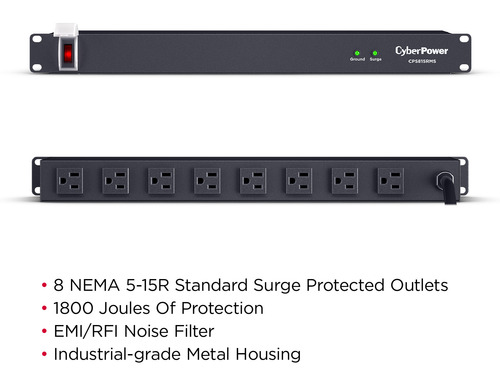

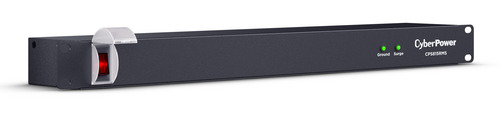

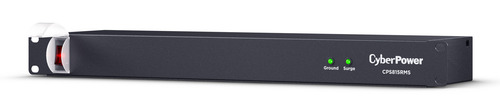

Engineered for the most demanding applications, the professional-grade Rackbar CPS815RMS safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS815RMS also performs superbly for home office use, providing 1800 joules of protection, 15-Amp electrical capacity with circuit breaker, and 8 surge-protected outlets (rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS815RMS has a 1U racksize and can be mounted horizontally.
Features of the CPS815RMS include an EMI/RFI noise filter, industrial-grade metal housing, AC power cord (6 ft.).
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
EMI/RFI Noise Filter
Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
LED Indicators
Provides information about the model’s status: Power, Ground, and Surge.
Industrial-Grade Metal Housing
Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
Specifications
Power
- Surge energy rating
- 1800 J
- AC outlets quantity
- 8 AC outlet(s)
- AC outlet types
- NEMA 5-15R
- Nominal input voltage
- 125 VAC
- USB charging
- No
- Clamping voltage
- 600 V
Ports & interfaces

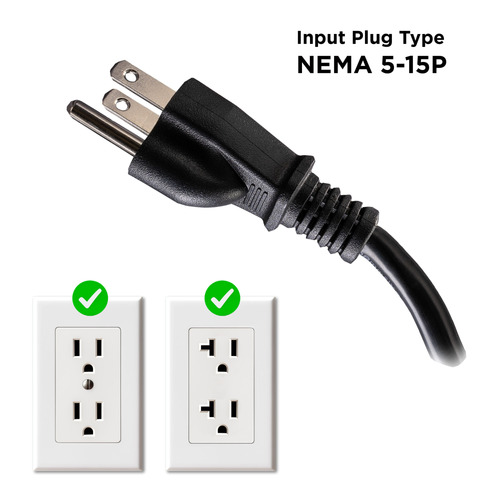

- Power plug
- NEMA 5–15P
- Cordless
- No
Features
- Product colour
- Black
- Material
- Metal
- Housing material
- Metal
- Rack mounting
- Yes
- Rack capacity
- 1U
- EMI/RFI noise filtering
- Yes
- On/off switch
- Yes
- Over current protection
- Yes
- Cable management
- Yes
Weight & dimensions
- Weight
- 1.86 kg
- Cable length
- 1.8 m
- Width
- 483 mm
- Depth
- 117 mm
- Height
- 44 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 14999 m
Indication
- Surge indicator
- Yes
- LED indicators
- Power
Packaging data
- Package width
- 548.6 mm
- Package depth
- 174.8 mm
- Package height
- 54.9 mm
- Package weight
- 2.04 kg
Packaging content
- Cables included
- Power
More in PDUs & Line Conditioners
CyberPowerCPS Rackmount PDU 15ACPS1215RM
CyberPowerSurge 4 Outlets 6 FT Cord 2 USB AP406U
CyberPower20A Derated to 16A, 208 230 V, 50Hz/60Hz, IEC320 C20 plug, 8 IEC320 C1PDU20BHVIEC8R
CyberPowerSwitched PDU 20A 120V NEMA L520P input 8 NEMA 520R output 12ft cord 1UPDU41002
CyberPower750VA/750W, Pure Sine Wave, NEMA 515P, 5 ft cord, 6 NEMA 515R, USB, SePR750LCD3C

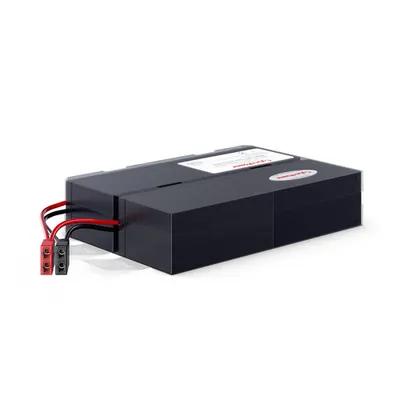

CyberPowerCyberpower UPS Preplacement Battery, 2 X 6V/8AH Batteries, 18MONTH WTYRB0690X2A
