CyberPowerUninterruptible Power Supplies (UPSs)
Smart App Sinewave uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 750 W 6 AC outlet(s)
- Battery Backup
- Surge Protection
- Line Interactive Topology
- Automatic Voltage Regulation (AVR)
- Sine Wave Output
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.75 kVA
- Output power
- 750 W
- Waveform
- Sine
- Input operation voltage (min)
- 74 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 57/63 Hz
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Maximum current
- 15 A
- Surge energy rating
- 1350 J
- Response time
- 4 ms
- Heat dissipation
- 192.5 BTU/h
- Power factor
- 1
- EMI/RFI noise filtering
- Yes
- Noise level
- 57.5 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Fault, Low battery alarm, Overload alarm

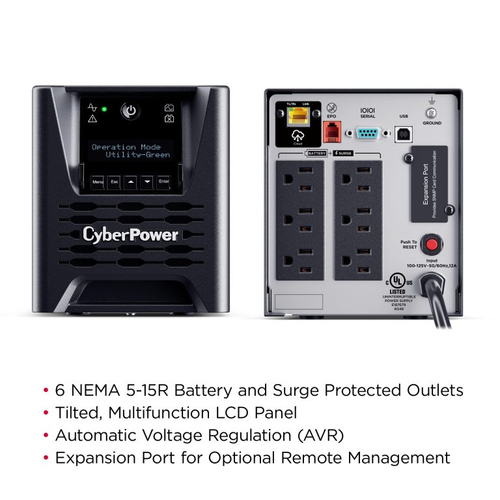

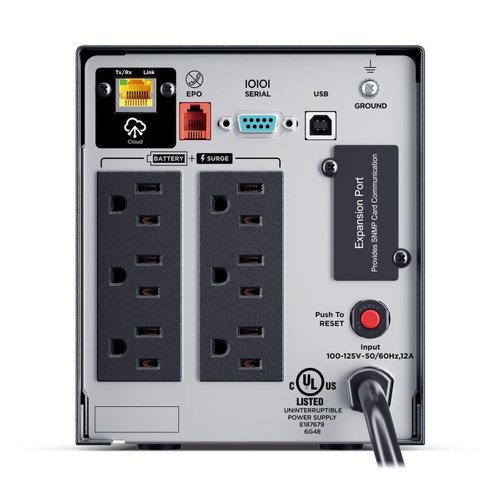

Ports & interfaces
- AC outlet types
- NEMA 5-15P
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Serial ports quantity
- 1
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 7 Ah
- Battery voltage
- 12 V
- Number of batteries supported
- 2
- Typical backup time at full load
- 3.3 min
- Typical backup time at half load
- 10.7 min
- Battery recharge time
- 8 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1270X2F
Design
- Form factor
- Tower
- Housing material
- Metal
- Cable length
- 1.5 m
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Power, Fault, Battery level
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
Packaging content
- Cables included
- USB cable, Serial

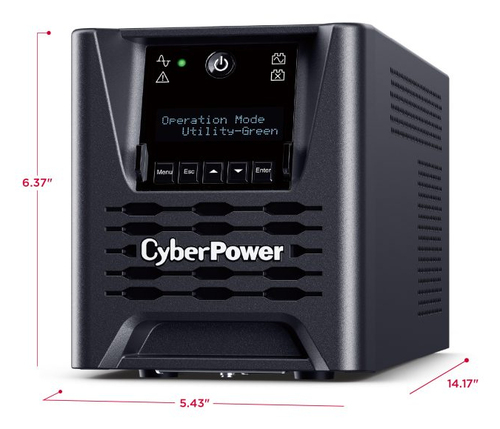

Weight & dimensions
- Width
- 138 mm
- Depth
- 162 mm
- Height
- 360 mm
- Weight
- 11.8 kg
Packaging data
- Package width
- 2641 mm
- Package depth
- 2844 mm
- Package height
- 4826 mm
- Package weight
- 13 kg
